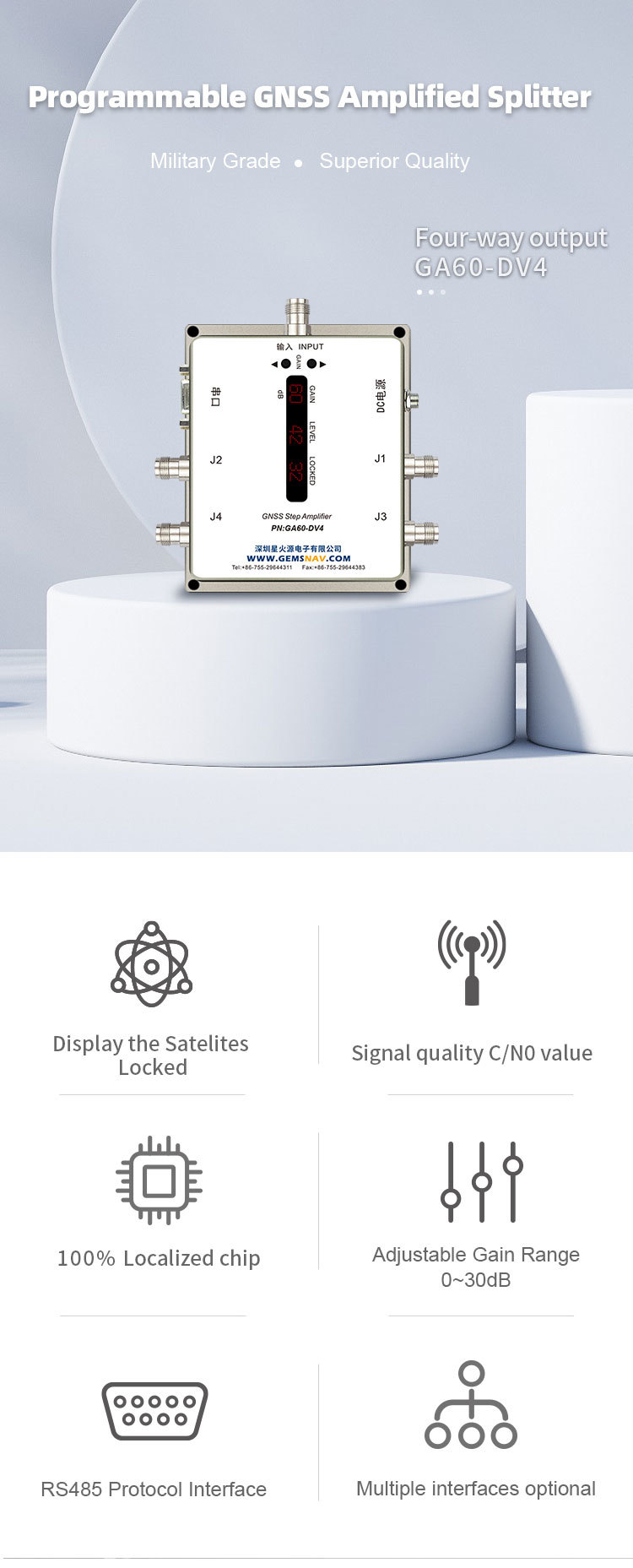

Programable step GNSS Amplifier GA60-DV4

√ Gain:0~55dB, 1dB step is adjustable √ Digital display:gain、Number of locked satellites、CN/0 Level √ Serial command control. √ Input and output port power-up settings √ Frequency range:1150~1650MHz

Classification:

Product

GPS and GNSS Amplifiers


+
  • GA60-DV4 图片2 无logo.jpg
  • GA60-DV4 图片3 无logo.jpg
  • GA60-DV4 图片1 无logo.jpg
  • GA60-DV4-en.jpg
  • GA60-DV4-DR.jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW
  • Peculiarity

    Gain:0~55dB, 1dB step is adjustable

    Digital display:gain、Number of locked satellites、CN/0 Level

    Serial command control.

    Input and output port power-up settings

    Frequency range:1150~1650MHz

    Description

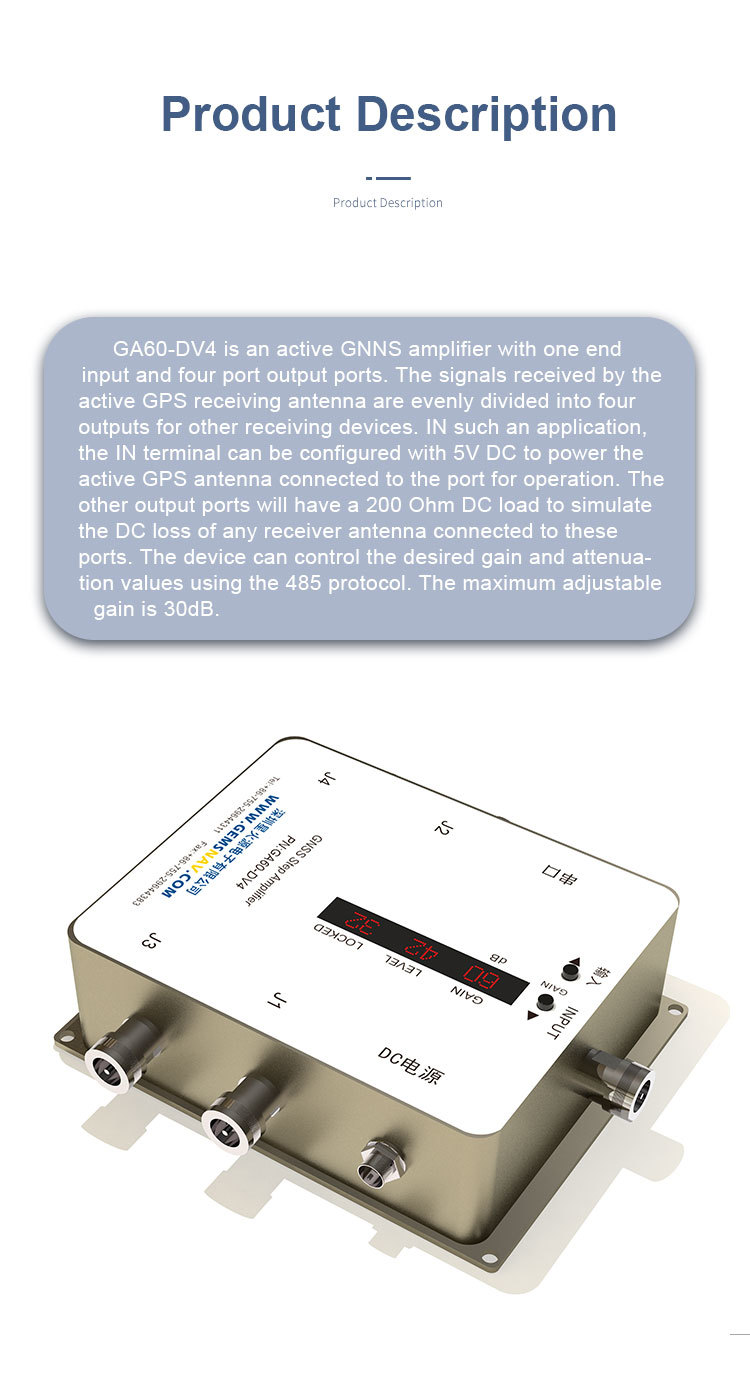

    GA60-DV4 series digital display gain step adjustable amplifier, support broadband multi-satellite system, the supported system includes Beidou, GPS, Galileo, GLONASS and other full-band satellite signals.

    Parameter

    Conditions

    Min

    Typ

    Max

    Units

    Freq. Range

    Antenna Any port

    1150



    1650

    MHz

    In &Out Imped

    In, all output ports



    50



    Ω

    Gain

    Stepping 1dB



    0~55



    dB

    Input SWR







    2.0:1

    -

    Output SWR







    2.0:1

    -

    Noise Figure







    1.5

    dB

     Gain Flatness







    2

    dB

    Phase balance







    1.0

    deg

    Group delay flatness







    1

    ns

    Isolation



    16





    dB

    DC input

    220VAC to 12VDC power adapter



    12



    VDC

    Device current







    300

    mA

    Operating Temperature



    -25°



    60°

    °C

    Maximum output power







    5

    dBm

    Maximum RF input

    Maximum RF input





    -20

    d

    Functional description

    1,Gain adjustable function, adjustable range: 0~55dB; The setting can be done via the adjustment button on the panel or via the serial port command;

    2,The input and output can be set to be energized (5V DC) or blocked DC, and the setting can be completed by the toggle switch on the panel or the serial port command;

          3,How to use serial port command control, connect the device to the computer, select through the serial port debugging assistant software: port, baud rate 9600, click "open serial port"; You can start controlling the product gain。
