Rack-mounted GPS Digital display step adjustable amplifier RGA30-DV4

√ Gain: 0-30dB, digital display step adjustable; √ Digital gain: LED digital display, clearly shows the current amplifier gain; √ Serial command control; √ Input port power setting; √ Applications:GPS signal indoor, Timing, Survey, Wireless Communication etc.

Classification:

Product

GPS and GNSS Amplifiers

Product accessories:

230817_RGA30-DV_Series_EN.pdf

Contact Us BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW
+
  • RGA30-DV4.jpg

230817_RGA30-DV_Series_EN.pdf

  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW

  • Description

    RGA30-DV4 is our later rack-mounted single stage of the low noise amplifier, its technical characteristics are as follows
    1. Digital display gain. LED digital display, clearly display the current amplifier gain.
    2. Gain:0-30dB, digital display step adjustable.
    3. Touch-tone gain adjustment: through the upper and lower key, you can adjust the gain when needed.
    4. Power control: toggle the power switch, easy control power supply state .
    5. Serial command control.

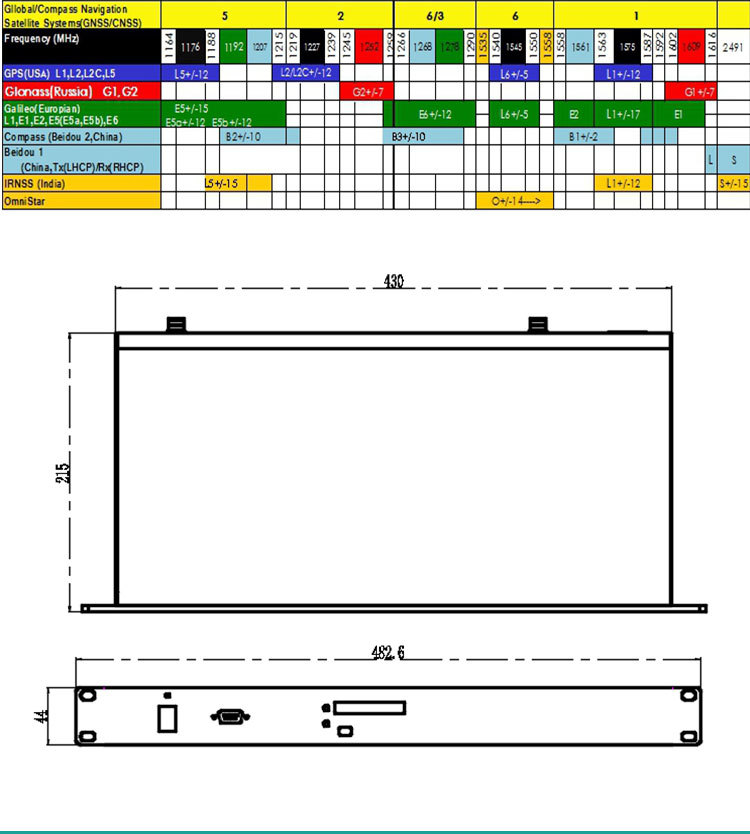

    6. Input and output port power setting.GPS: L1,L2L2C,L5
    Galileo: G1,G2;
    Glonass: G1,G2:
    Beidou2: B1.B2.B3
    IRNSS L1,L5;

    Specifications

    Parameter

    Conditions

    Min

    Typ

    Max

    Units

    Freq. Range

    In- Output ports, 50Ω

    1150



    1650

    MHz

    In &Out Imped

    In, all output ports



    50



    Ω

    Gain

    1207MHz

    1227MHz

    1561MHz

    1575MHz

    1609MHz



    In- Output ports

    -45dBm Input Level



    0~30



    dB

    (0~30)-1.5

    0~30

    (0~30)+1.5

    (0~30)-1.5

    0~30

    (0~30)+1.5

    (0~30)-1.5

    0~30

    (0~30)+1.5

    (0~30)-1

    0~30

    (0~30)+1

    (0~30)-1.5

    0~30

    (0~30)+1.5

    Input SWR







    2.5:1

    -

    Output SWR







    2.5:1

    -

    Noise Figure







    3

    dB

       Gain Flatness







    3

    dB

    Amp. Balance







    0.5

    dB

    Phase Balance







    1.0

    deg

    Group Delay Flatness







    1

    ns

    Current

    Pass DC, No Powered configuration, DC input on Out Port





    200

    mA

    Max RF Input

    Max RF input without damage





    0

    dBm

    Operating Temperature



    -40



    85

    ℃



    pic  pic pic  pic pic pic pic pic
