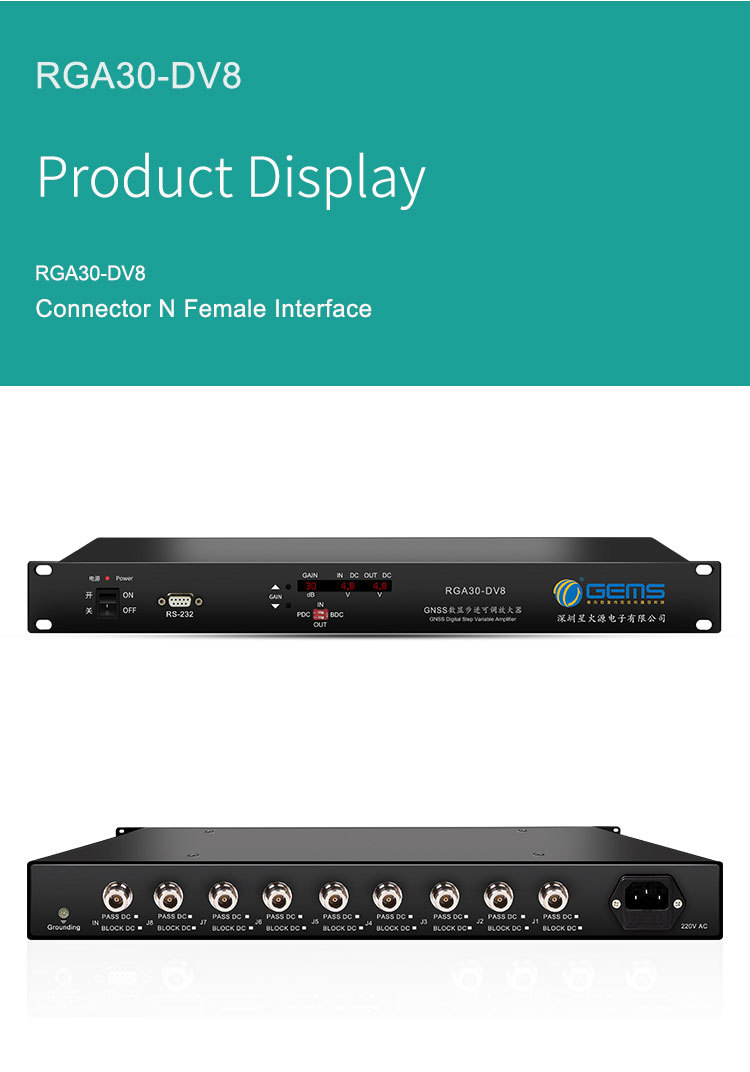

Rack-mounted GPs Digital display step adjustable amplifier RGA30-DV8

√ Gain:0-30dB,digital display step adjustable. √ Digital gain: LED digital display, clearly show the current amplifier gain. √ Serial command control. √ Input port power setting. √ One way input, 8 way outpu. √ Application: GPS signal Indoor, clearly shows the current amplifier gain.

Classification:

Product

GPS and GNSS Amplifiers

Product accessories:

230817_RGA30-DV_Series_EN.pdf

DESCRIPTION
Videos
Download
BUY NOW

Description

RGA30 – DV8 is our latest rack‐mounted single stage of the low noise amplifier, its technical characteristics are as follows:
1. Digital display gain: LED digital display, clearly display the current amplifier gain;

2. Touch‐tone gain adjustment: through the upper and lower key, you can adjust the gain when needed;

3. Power control: toggle the power switch, easy control power supply state;

4. Serial command control;

5. Input port power setting.

Cover GPS, Galileo, and GLONASS, Beidou2 frequencies etc. The device features 0‐30dB gain and a noise figure less than 3dB. Since the product consumes less than 100mA, both the equipment and the receiving antenna
are vertically mounted.

Specifications

Parameter	Conditions	Min	Typ	Max	Units
Freq. Range	In- Output ports, 50Ω	1164		1616	MHz
In &Out Imped	In, all output ports		50		Ω
Gain 1207MHz 1227MHz 1561MHz 1575MHz 1609MHz	In- Output ports -45dBm Input Level		0~30		dB
		(0~30)-1.5	0~30	(0~30)+1.5
		(0~30)-1.5	0~30	(0~30)+1.5
		(0~30)-1.5	0~30	(0~30)+1.5
		(0~30)-1	0~30	(0~30)+1
		(0~30)-1.5	0~30	(0~30)+1.5
Input SWR				2.5:1	-
Output SWR				2.5:1	-
Noise Figure				3	dB
Gain Flatness				3	dB
Amp. Balance				0.5	dB
Phase Balance				1.0	deg
Group Delay Flatness				1	ns
Current	Pass DC, No Powered configuration, DC input on Out Port			200	mA
Max RF Input	Max RF input without damage			0	dBm
Operating Temperature		-40		85	℃
