GPSIGNSS Adjustable Amplifier GA30-V

√ Full GNSS band:Beidou B1I/B2I/B3I/B1C/B2a/B2b, GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6, SBAS L1/L5, QZSS L1/L2/L5/E6, IRNSS L5, L-band; √ Frequency Range:1150~1650MHz; √ Gain:0dB ~ 30dB continuously adjustable; √ Pass DC In & Out (Standard)； √ Low Noise Figure: <2.5dB; √ 12V DC Power Adaptor(Standard); √ Input and output ports pass DC (DC block is optional) √ Optional Connectors: N/TNC/BNC/SMA (Female)

Classification:

Product

GPS and GNSS Amplifiers

产品配件:

120101_GA30-V_GPS_Amplifier_EN.pdf

120101_GA30-V_GPS_Amplifier_EN.pdf

File size: 895.1KB

Select all

Description
Videos
Download
BUY NOW

Description

The GA30-V line amplifier is a single-stage, low-noise amplifier. RF frequency range covers the full range of GNSS frequencies. And gain is 0~30dB, Noise figure less than 2dB. Power consumption less than 20mA.

Specifications

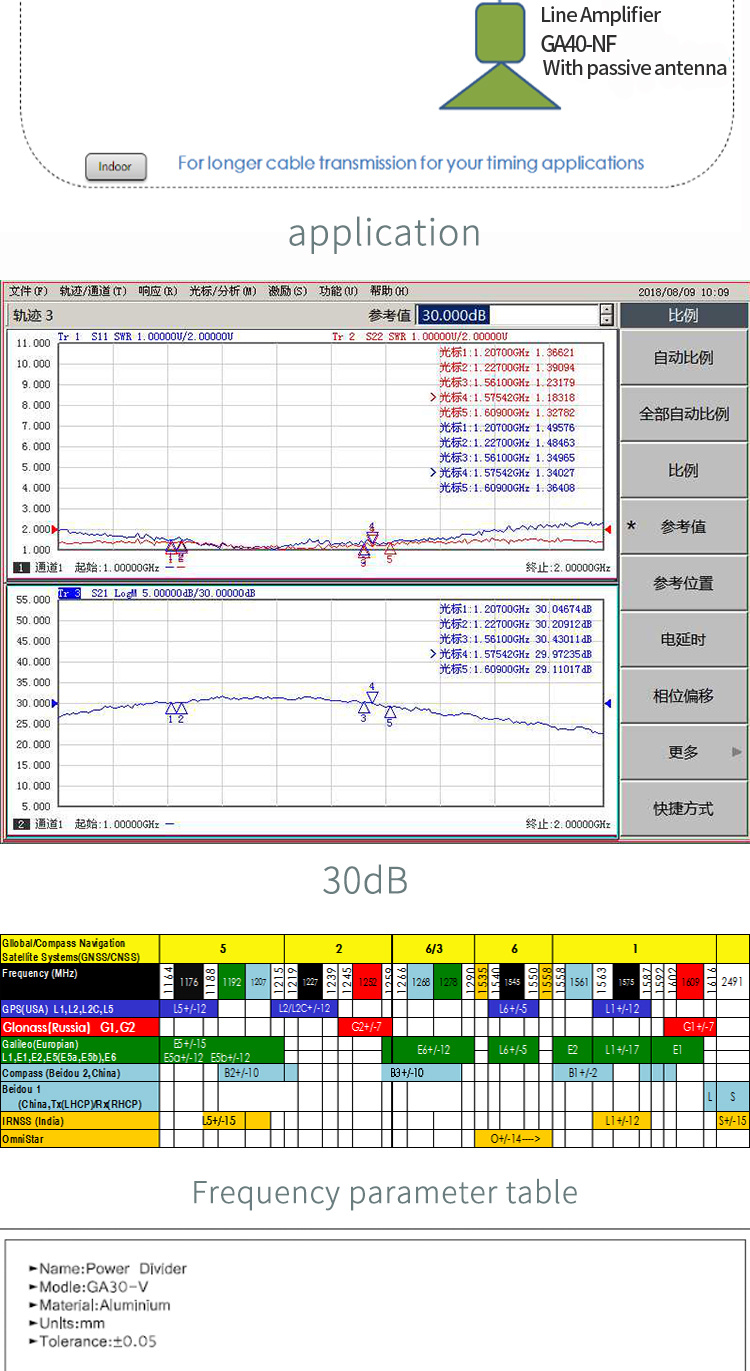

Parameter					Conditions	Min	Typ	Max	Units
Freq. Range					In- Output ports, 50Ω	1.2		1.7	GHz
In &Out Imped.					In, all output ports		50		Ω
Gain	1227MHz				In- Output ports -45dBm Input Level	28	30	32	dB
Gain	1575MHz					28	30	32
Adjustable gain		1227MHz		Max		29	30	31
		1227MHz		Min		-4	-2	0
		1575MHz	Max			29	30	31
		1575MHz	Min			-2	0	1
Input SWR								2.5:1	-
Output SWR								2.5:1	-
Nois Figure								2	dB
Gain Flatness								3	dB
Current balance								0.5	dB
Phase Balance								1.0	deg
Group Delay Flatness								1	ns
Device current								16	mA
DC IN					The DC input on the input or output port	3	5	16	VDC
AC supply							220		AC
Max RF Input					Maximum lossless RF input			0	dBm
Operating temperature						-40		85	℃
