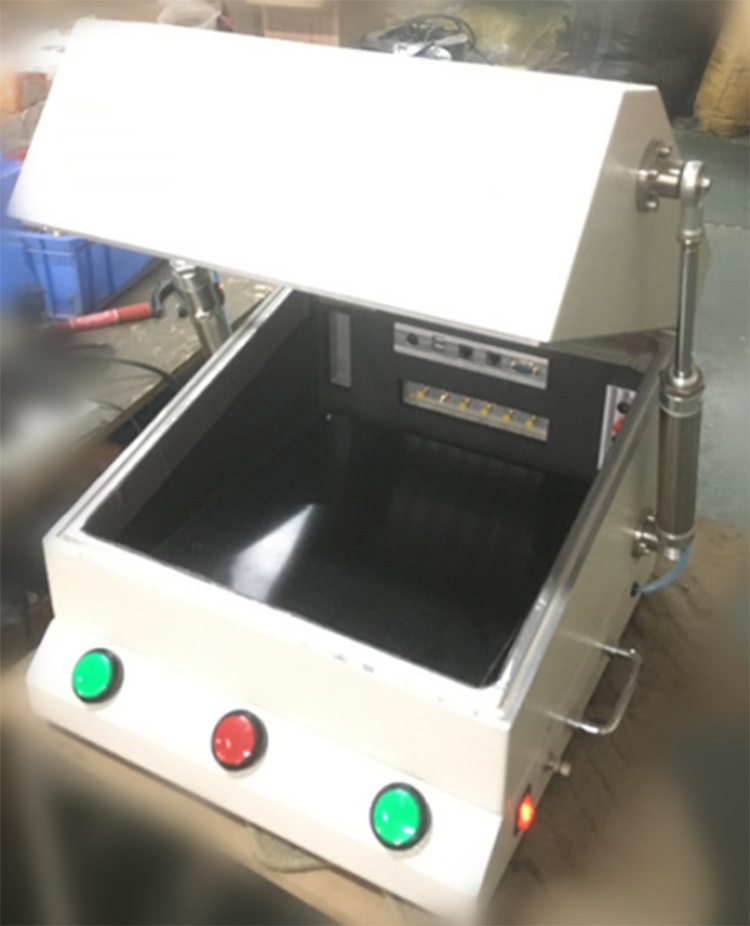

Pneumatic Sheet Metal Shielding Box|PB0317

Advanced Pneumatic Sheet Metal Shielding Box is a high-performance shielding device designed for wireless communication testing and electromagnetic compatibility testing √ Suitable for wireless communication test, EMI test, EMS test √ Coupling test, RF function test, WIFI test √ Shielding effect: 800M Hz-6GHz≥70dB √ Operation mode: pneumatic shielding box

Classification:

Product

RF Shielding And Sound Insulation

RF Shield Box

产品配件:

Pneumatic Sheet Metal Shielding Box|PB0317

Description
Videos
Download
BUY NOW

Product Name: Shielding Box
Product model: PB0317
Product code: 12100317
Operation mode: pneumatic
Advanced Pneumatic Sheet Metal Shielding Box is a high-performance shielding device designed for wireless communication testing and electromagnetic compatibility testing. Its core function is to block external electromagnetic interference and provide a stable and reliable testing environment through a precision-made metal shell and internal shielding structure. The pneumatic switch design makes the equipment operation more convenient and quick and is widely used in test scenarios that require high precision and high efficiency.
This shielding box has many unique advantages. First, its shielding efficiency is extremely high, covering the frequency band of 800MHz to 6GHz, which can effectively isolate 70-80dB of external interference, providing the best guarantee for equipment testing. Secondly, the pneumatic switch design not only improves the convenience of operation but also greatly improves work efficiency, especially suitable for frequent switching test needs. In addition, the equipment adopts a sturdy stainless steel shell with strong durability, and the internal space design is reasonable, can accommodate various sizes of tested equipment, and has excellent adaptability.
Advanced Pneumatic Sheet Metal Shielding Box is widely used in many fields, including wireless communication module testing, Wi-Fi and Bluetooth device research and development, automotive electronics, drones, smart homes, and IoT device testing. For R&D laboratories and production test lines, this shielding box is not only a reliable tool but also a key equipment to improve test efficiency and accuracy, helping technological innovation and product optimization in various industries.
1. Main functions and scope of application:
This shielding box is suitable for wireless communication testing
EMI test, EMS test
Coupling test, (coupled antenna additional)
RF function test WIFI test
2. Structural performance index:
Operating frequency 800MHz-6GHz
Shielding effect 800M Hz-6GHz 70-80dB
Box size L440*W460*H400mm
Working size L410430*H300mm
Material 2MM Stainless steel plate
net weight 20KG
Appearance color Off-white

Operating frequency	800MHz-6GHz
Shielding effect	800M Hz-6GHz 70-80dB
Box size	L440W460H400mm
Working size	L410430*H300mm
Material	2MM Stainless steel plate
net weight	20KG
Appearance color	Off-white
