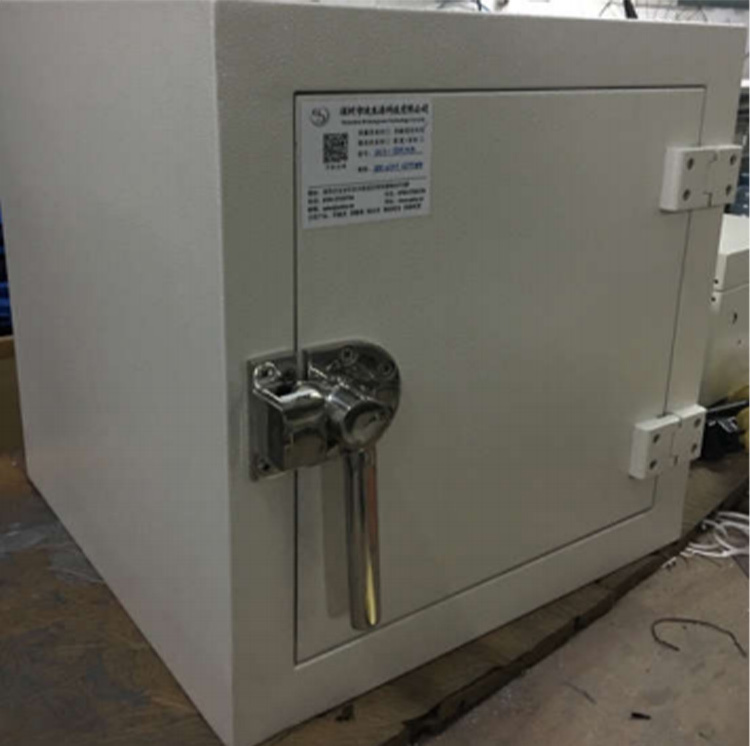

Front Door Opening Shielding Box|PB0319

√ Door opening method: manual front door opening; √ Integral welding box, good sealing, good shielding effect, reliable and solid design; √ All data ports and power signals are EMI filtered;

Classification:

Product

RF Shield Box

RF Shielding And Sound Insulation

Product accessories:

Contact Us BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW
+
  • PB0319.jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW

  • Product Name: Shielding Box
    Product model: PB0319

    Product Code: 12100319

    1. Application:
    PB0319 is a manual shielding box, its working size is large, suitable for building smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, smart home and other fields of modules, terminal test solution platform.
    The shielding box is made of sheet metal material, which has good shielding fit and strong structure. Its operation adopts snap-on control, which is simple and labor-saving.
    2. Main functions and scope of application:
    This shielding box is suitable for wireless communication testing
    EMI test, EMS test
    Coupling test, (coupled antenna additional)
    RF functional test WIFI test
    3. structural performance indicators:
    Working frequency: 800MHz-6GHz
    Shielding effect: 800M Hz-6GHz 70-80dB
    Box size: L400*W450*H400mm
    Working size: L370*W420*H370mm
    Material: sheet metal
    Net weight: 15KG
    Appearance color: off-white

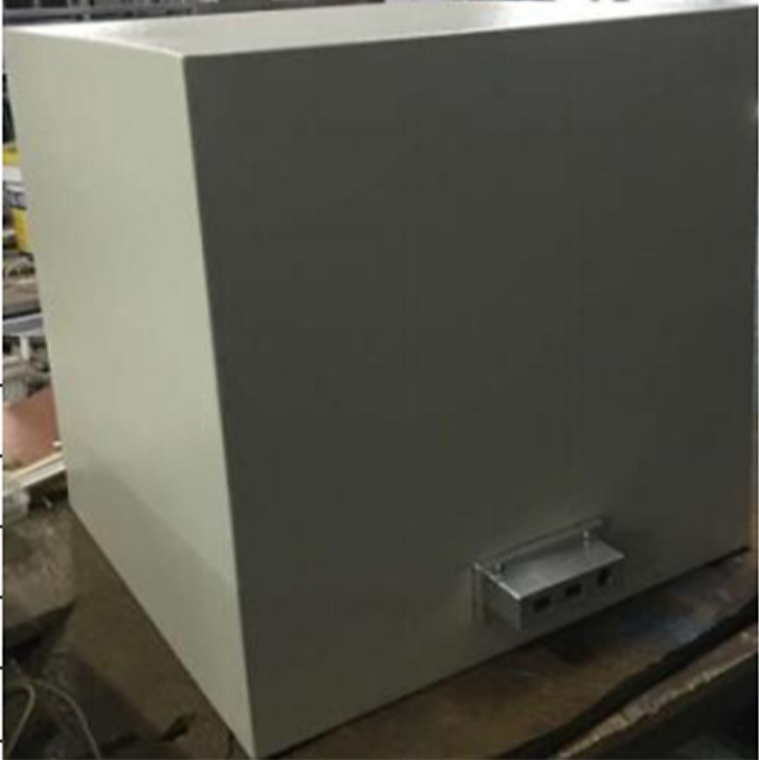

    4. Wiring port:

    Interface name Interface specifications
    SMA-SMA Characteristic impedance 50 ohms, frequency range 0-6GHz
    D89 4.5Mbps, withstand voltage DC 0-60V/1.3A
    USB 2.0 Standard USB20 data transfer 480Mbps/1.5A
    DC power supply direct current 0-100V/3A
    Internet Standard 1000M network port, data transmission/1.6A
