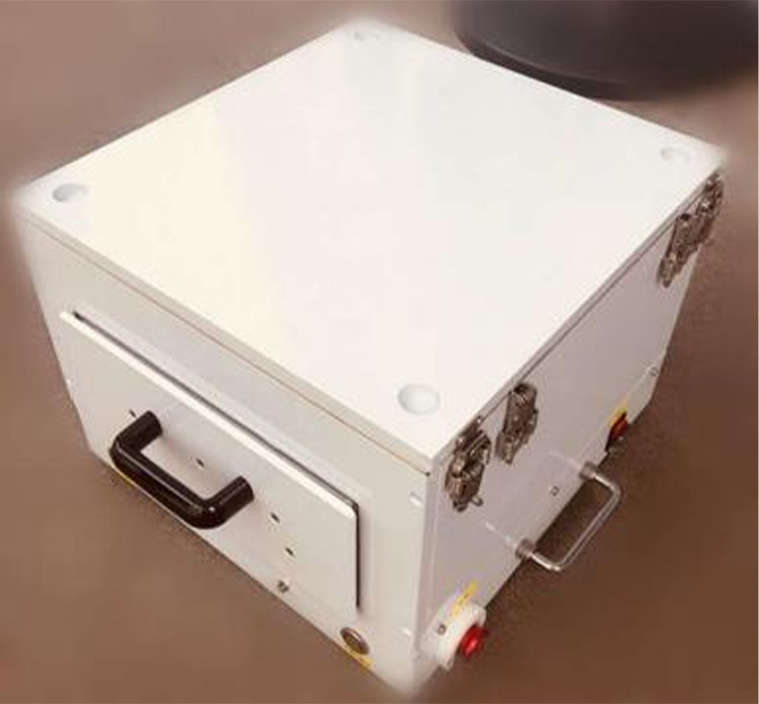

Pneumatic Drawer Type Shielding Box|PB0320

√ Operating Frequency: 800MHz-6GHz; √ Shielding Effect: 800MHz-6GHz 70-80dB; √ Suitable for wireless communication test, EMI test, EMS test; √ Integral welded case, good sealing, good shielding effect, reliable and sturdy design; √ Operation mode: Pneumatic; √ Fully automatic with program control; √ Shielding effect up to 80dB

Classification:

Product

RF Shielding And Sound Insulation

RF Shield Box

产品配件:


Pneumatic Drawer Type Shielding Box|PB0320
+
  • Pneumatic Drawer Type Shielding Box|PB0320
  • Description
  • Videos
  • Download
  • BUY NOW
  • Product Name: Shielding Box
    Product model: PB0320
    Product Code: 12100320

    1. Application:
    1. PB0320 is a pneumatic drawer type shielding box, its working size is large, suitable for wireless network cards, routers, mobile phones and other wireless communication equipment or PCB board detection.
    The shielding box is made of 12MM aluminum plate welding, with good shielding and firm structure. Programmable horizontal entry and exit, suitable for building automated production tests.

    2. Main Functions and Application Scope: Wireless communication test, EMI test, EMS test, coupling test (coupling antenna separately), RF function test WIFI.

    2. Main functions and scope of application:
    This shielding box is suitable for wireless communication testing
    EMI test, EMS test
    Coupling test, (coupled antenna additional)
    RF functional test WIFI

    3. test structural performance indicators:
    Working frequency: 800MHz-6GHz
    Shielding effect: 800M Hz-6GHz 70-80dB
    Box size: L360*W380*H270mm
    Working size: L320*W340*H165mm
    Material: 12MM aluminum plate
    Net weight: 20KG
    Appearance color: off-white

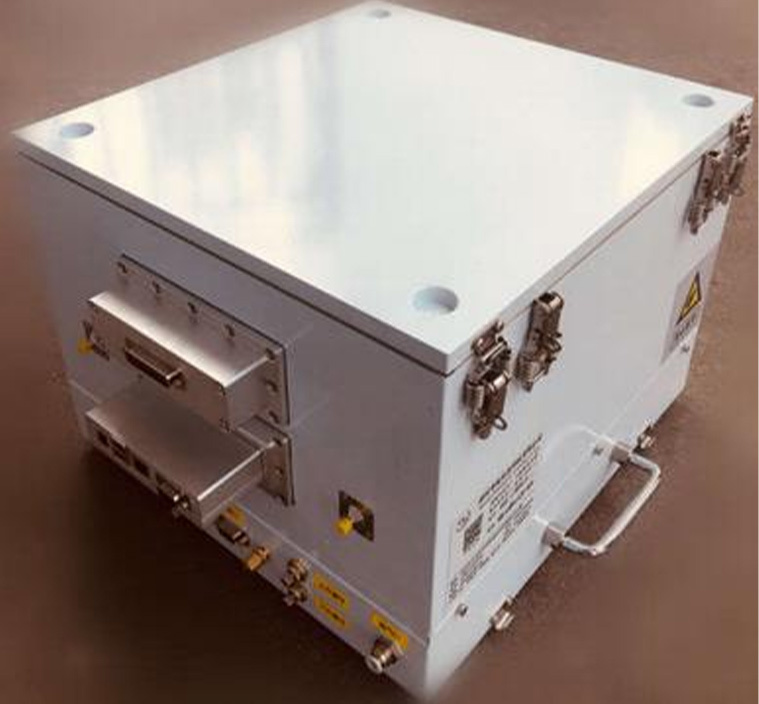

    4. test structural performance indicators:

    Interface namePart Name
    SMA-SMADoor handle (manual closing/opening)
    D89a handle for a suitcase
    USB 2.0AC220Vsocket (for electric plug)
    Dc power supplyUSB2.0 connector
    InternetDC connector
    Instead of platesspare
