Rackmount Digital Gain Adjustable GNSS Repeater Kit | GNSSRK-D-RDV4
Classification:
Product
GPS and GNSS Repeater Kits
Product accessories:
- DESCRIPTION
- Videos
- Download
- BUY NOW
-
Functional Description
GNSSRK-D-RDV4 is a repeater operaters by receiving GPS Beidou3 atelite signalwith an antema located outsid the building and re-adiatng the signals into the indoor area or covered space where satellite signal cannot reach.
GNSSRK-D-RDV4 is a four point GP/Glonass Beidou2/Galleo repeater, transmiting GPS/Beidou3 sinal. This solution offer adjustable test signal to receiverf need extend the system.you can add assemblies and sending antennas, so as to cover satelite signal indoor large area and more rooms or buildings
Typical Application
For GPS/Beidou3 products testing.
For testing the cel-phone with GPS/Beidou3, PND, car navigators, tracker, survey products, etc.
For the purpose of GPS/Beidou3 signal covering.
Car parks, lab, aviation manufacturing hangar, trade shows, Emergency-, safety vehucles, public transportation etc

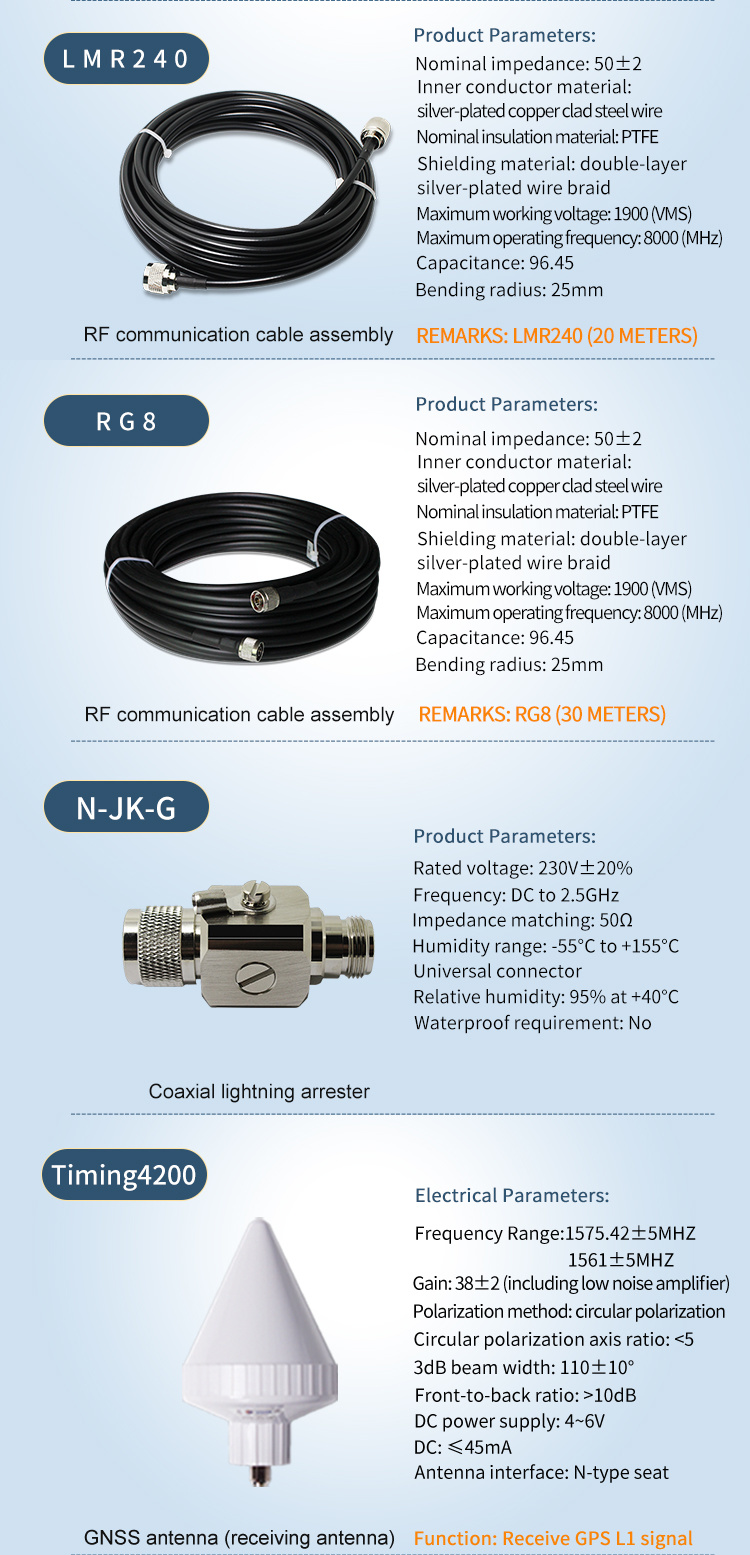

Standard Configurations
For GPS/Beidou3 products testing.
For testing the cel-phone with GPS/Beidou3, PND, car navigators, tracker, survey products, etc.
For the purpose of GPS/Beidou3 signal covering.
Car parks, lab, aviation manufacturing hangar, trade shows, Emergency-, safety vehucles, public transportation etc
Specification
Electrical Specifications, Operating Temperature -40~85℃.
Parameter Conditions Min Typ Max Units Freg Range In-Output ports, 500 1164 1616 MHz In&Out Imped In, all output ports 50 Ω Gain
1207MHz
1227MHz
1561MHz
1575MHz

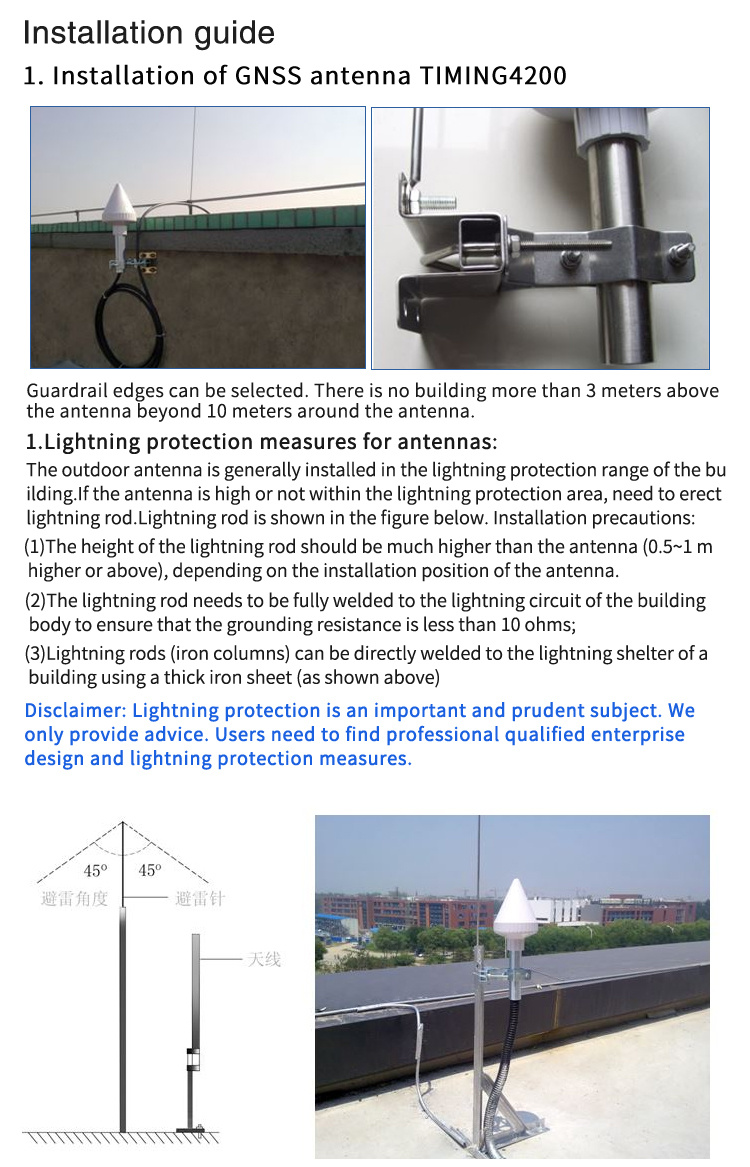

1609MHzIn-Output ports45dBm Input Level 0-30 dB (0-30)-1.5 0-30 (0-30)-1.5 (0-30)-1.5 0-30 (0-30)-1.5 (0-30)-1.5 0-30 (0-30)-1.5 (0-30)-1.5 0-30 (0-30)-1.5 (0-30)-1.5 0-30 (0-30)-1.5 Input SWR 2.51 - Output SWR 2.51 - Noise Figure 3 dB Gain Flatness 3 dB Phase Balance 1.0 deg Group Delay Flatness 1 ns Max RF Input Max RF input without damage 0 dBm Operating Temperature -40 85 ℃ 1. The GNSS Antenna be installed on roof of the building;

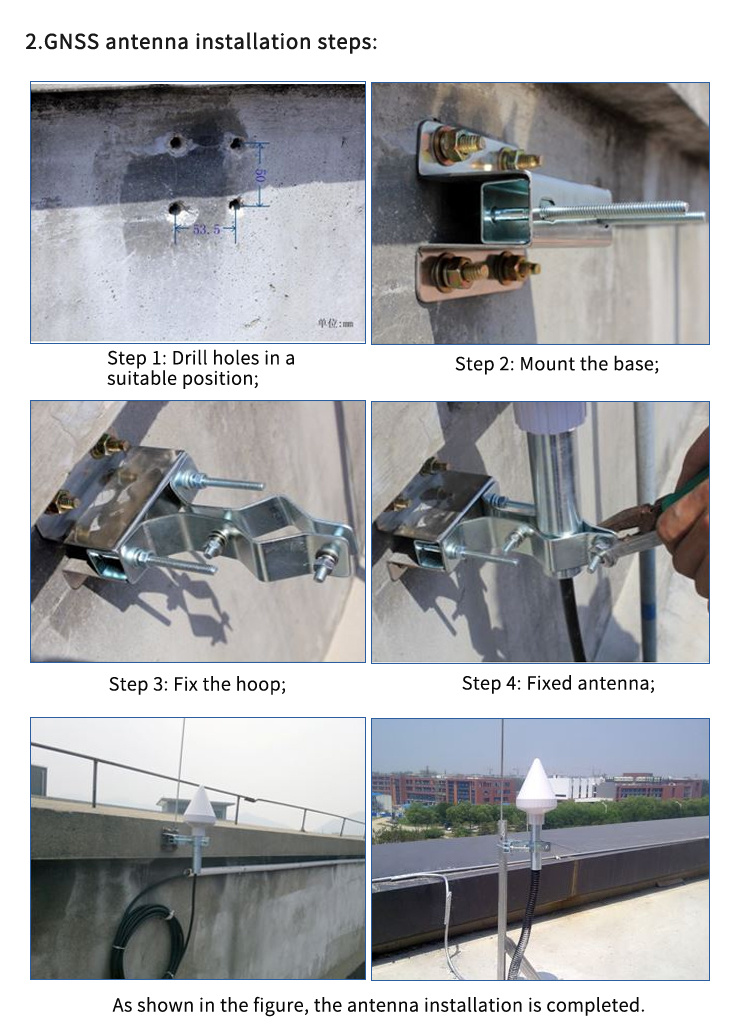

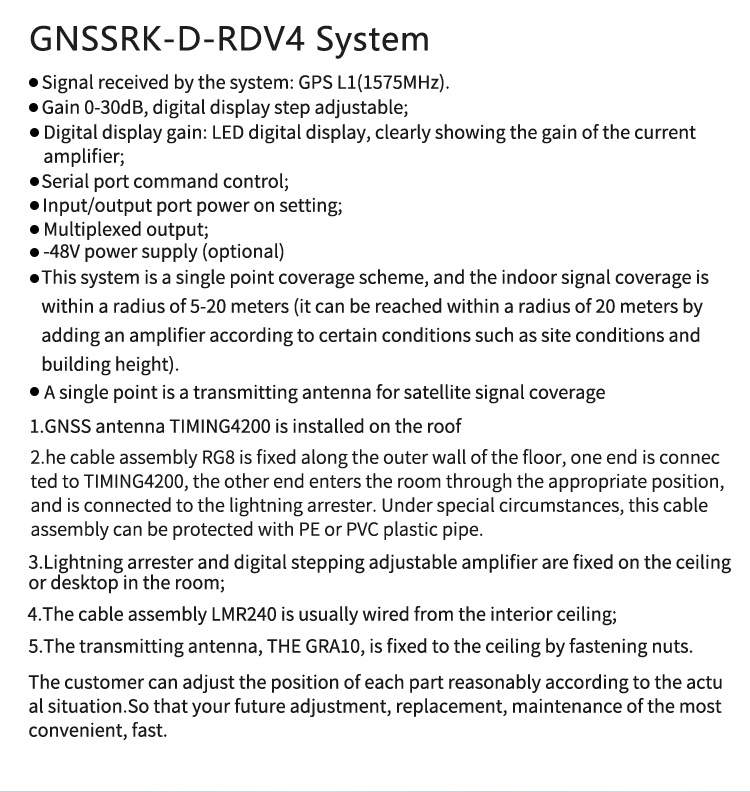

2. Cable assembly RG8 fixed along the out wall, one terminator connects s440, the another to profector at the appropriate. In some special environment, select PE or PVC material plastic pipe to protect the cable assembly is quite sensibe;
3. Protector and digital display step adjustable amplifier are fixed on ceiling or on the table;
4. Cable assembly KSR240 is fixed alone the ceiling of the operating place;
5. Antenna GRA10 be fixed on the ceiling.

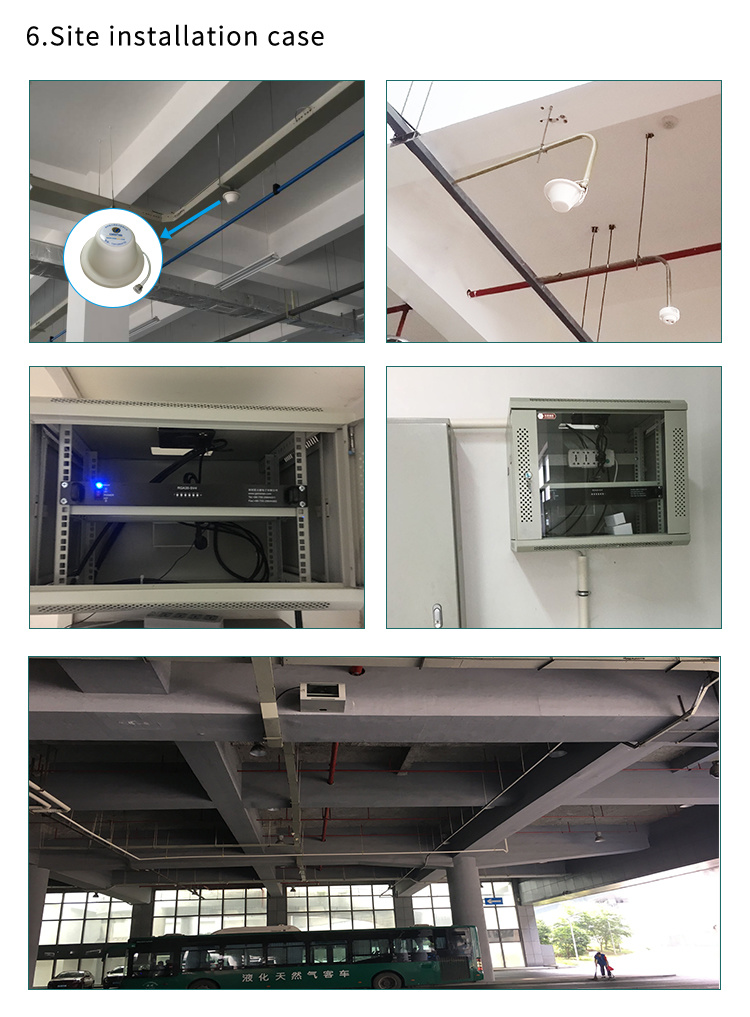

According to the actual environment, you can adjust positions of some parts, which can make you the adjust, change and overhual more easily.
