Rackmount Digital Gain Adjustable GNSS Repeater Kit | GNSSRK-D-RDV
GPS and GNSS Repeater Kits
- BUY NOW
GNSSRK-D-RDV is a GPS Repeater Kit operaes by receiving GPS/Beidou/Glonass satelite signals with an antemna outside the buiding and re-radiating the signals into the indoor area or covere space where satellite signal cannot reach.
If need extend the system, you can add assemblies and sending antennas, so as to cover satelite sianal indoor large area and more rooms or buildings
2. Functional Description
For GNSS products testing
For testing the cell- phone with GPS/Beidou2 , PND, carnavigators, tracker, survey products, etc.
For the purpose of GPS/ Beidou2 signal covering
Car parks, lab, aviation manufacturing hangar, trade shows, Emergency-, safetyvehicles, public transportation etc.
3. Standard Configurations
Digital Display Step Adjustable Amplifier:RGA30-DV 1 ea.
Receiving Antenna: TIMING42001 ea.
Cable Assembly:XHY240,20M,1 ea;
Sending Antenna: GRA10,1 ea,
The cable components can be selected according to the customers' environment and can communicate with our technicians

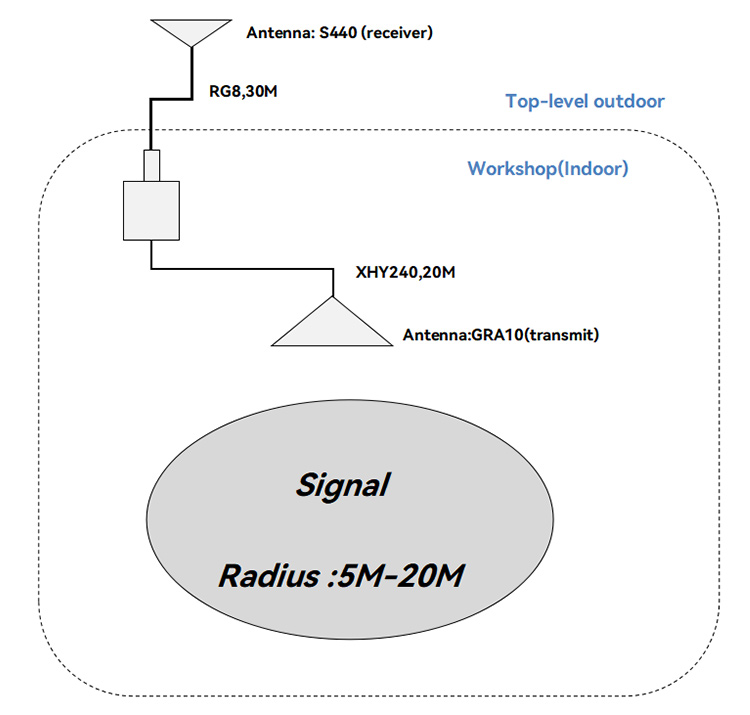

4. Topological (Under standard configuration)
5. Kits include
5.1 Digital Display Step Adjustable Amplifier RGA30-DV
Used to adjust system gai. 0-30 dB adiustable, you can control when needed. The input and output can be set to energize 5v Dc or not energizedThe system power supply voltage is 220V

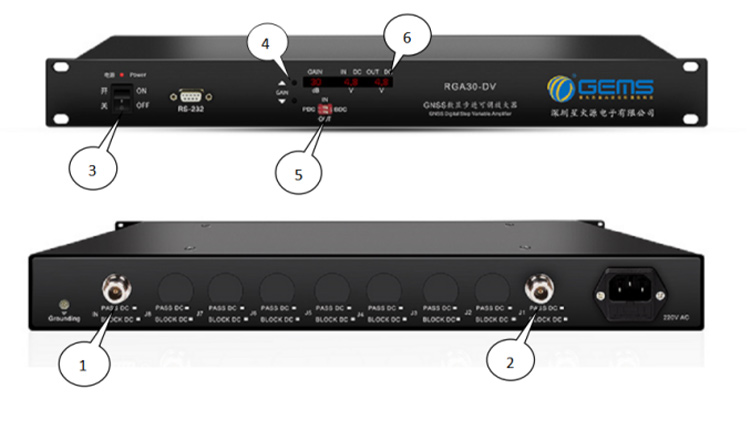

① and ② are RGA30-DV input and output.
③ For power control switch. System power-on when allocated to upward, opposite, system stops working.
④ For the gain adjustiment button, you can adjust the gain size, you can adjust the controler gain increase or decrease. (Through the GAIN buton to adiust. UP tothe big, down to small.)
⑤ For the input and output power state setting, IN for the input, Out for the output, PDC that power, BDC that does not power.
⑥ For the digital display, showing the current gain value of the amplifier, and the voltage of the input and output ports.
Parameter Conditions Min Typ Max Units Freg Range In- Output ports, 50Ω 1150 1650 MHz In & Out Impedance In, all output ports 50 Ω Gain
In- Output ports
-45dBm Input Level
0-30 dB (0~30)-1.5 0-30 (0~30)+1.5 (0~30)-1.5 0-30 (0~30)+1.5 (0~30)-1.5 0-30 (0~30)+1.5 (0~30)-1 0-30 (0~30)+1 (0~30)-1.5 0-30 (0~30)+1.5 Input SWR 2.0:1 - Output SWR 2.0:1 - Noise Figure 3 dB Gain Flatness 3 dB Phase Balance 1.0 deg Group DelayFlatness 1 ns Current Pass DC.No Powered configuration, Dc inputon Out Port 250 mA Max RF Input Max RF input without damage 0 dBm Operating Temperature -40 85 ℃
