8 Way Rackmount Digital Gain Adjustable GPS and GNSS Repeater Kit GNSSRK-D-RDV8
Classification:
Product
GPS and GNSS Repeater Kits
产品配件:
- Description
- Videos
- Download
- BUY NOW
-
Description
GNSSRK-D-RDV8 series of BDS and GPS narrowband repeater system, leading outdoor Beidou B1, GPS L1,and GLONASS G1 navigation satellite signals to the indoor, tunnels, subways, mines, or other places where satellite signals cannot be reached, to finish all the positioning and timing tasks and tests indoors instead of outdoors.
Typical Application
1. BDS and GPS indoor signal coverage for indoor or underground bus parking lots;
2. Manufacturing Industries: Cell phone production line, Auto parts production line, Chip module production line and other occasions;
3. Other Occasions: Fire parking garages, exhibitions, etc.

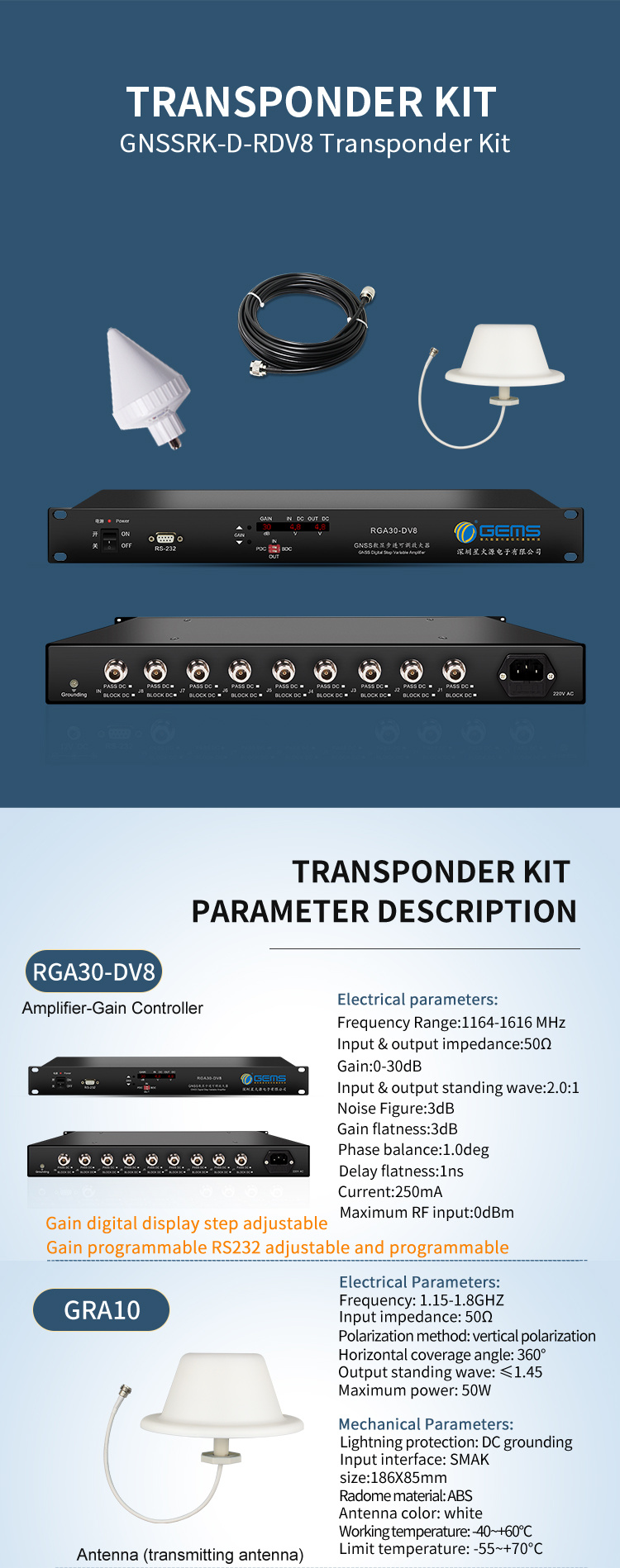

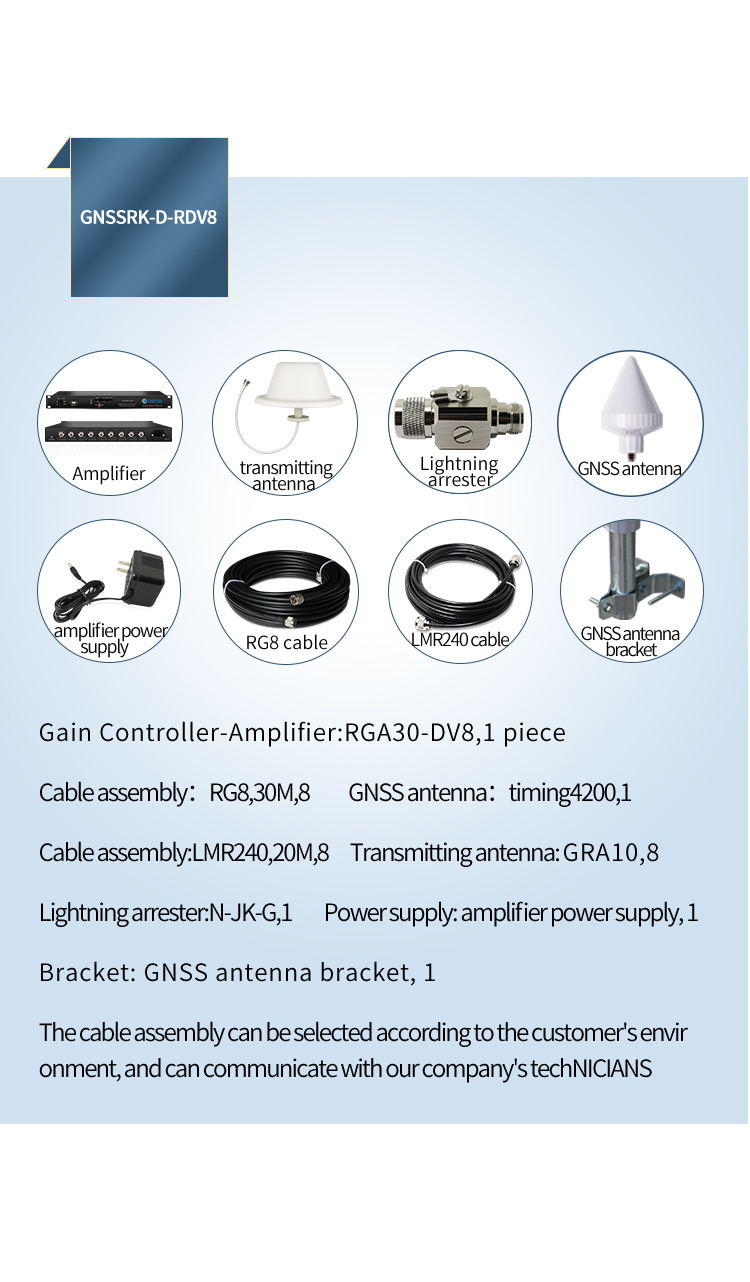

Equipment List With Standard Configuration
Amplifier: RGA30-DV ,1 ea;
Receiving Antenna: TIMING4100,1 ea;
Cable Assembly: RG8,30M, 1ea;
Cable Assembly: XHY240,20M,8 ea;
Cable Assembly: XHY240,5M,1 ea;
Sending Antenna: GRA10,8 ea;
Ligting-protector: 1 ea;
Connector：NK-NK 1ea
System characteristics
System signal：Beidou B1, GPS L1, GLONASS G1, Galieo E1, E2
Frequency range of the antenna: 1575.42±5MHz & 1561±5MHz & 1589.74±2 & 1609±2MHz;
Frequency range of the amplifier:1150~1650 MHz;
Gain digital display adjustable in steps
Digital gain adjustment: 0-30dB, LED digital display；
Serial command control；
Input Port Power-up Settings；
Coverage Range: 8 antennas, each radiating 5-25 meters；
The addition of the line amplifier GA40 to the front and end of the system can extend the radiation range.
Specification
Parameter
Condition
Mini
Std.
Max
Unit
Frequency Range
In ,Out, 50Ω
1150
1650
MHz
Impedance
In ,Out
50
Ω
Gain
Digital Step Adjustable
0~30
dB
Input VSWR
2.0:1
-
Output VSWR
2.0:1
-
Noise Figure
3
dB
Gain Flatness
3
dB
Delay Flatness
1
ns
Power Input
220VAC
100
220
264
VAC
Current
250
mA
1dB Compression
RGA30-DV
-4
dBm
RGA30-DV4
-29
RGA30-DV8
-29
Max RF Power
RGA30-DV
0
dBm
RGA30-DV4
-23
RGA30-DV8
-27
Nun. Of input
GA30-DV,GA30-DV4,GA30-DV8
1
个
Nun. Of Output
RGA30-DV
1
RGA30-DV4
4
RGA30-DV8
8
Max RF Input
Maximum lossless RF input
0
dBm
Working Temperature
-40°
85°
gnss repeater
gps repeater
