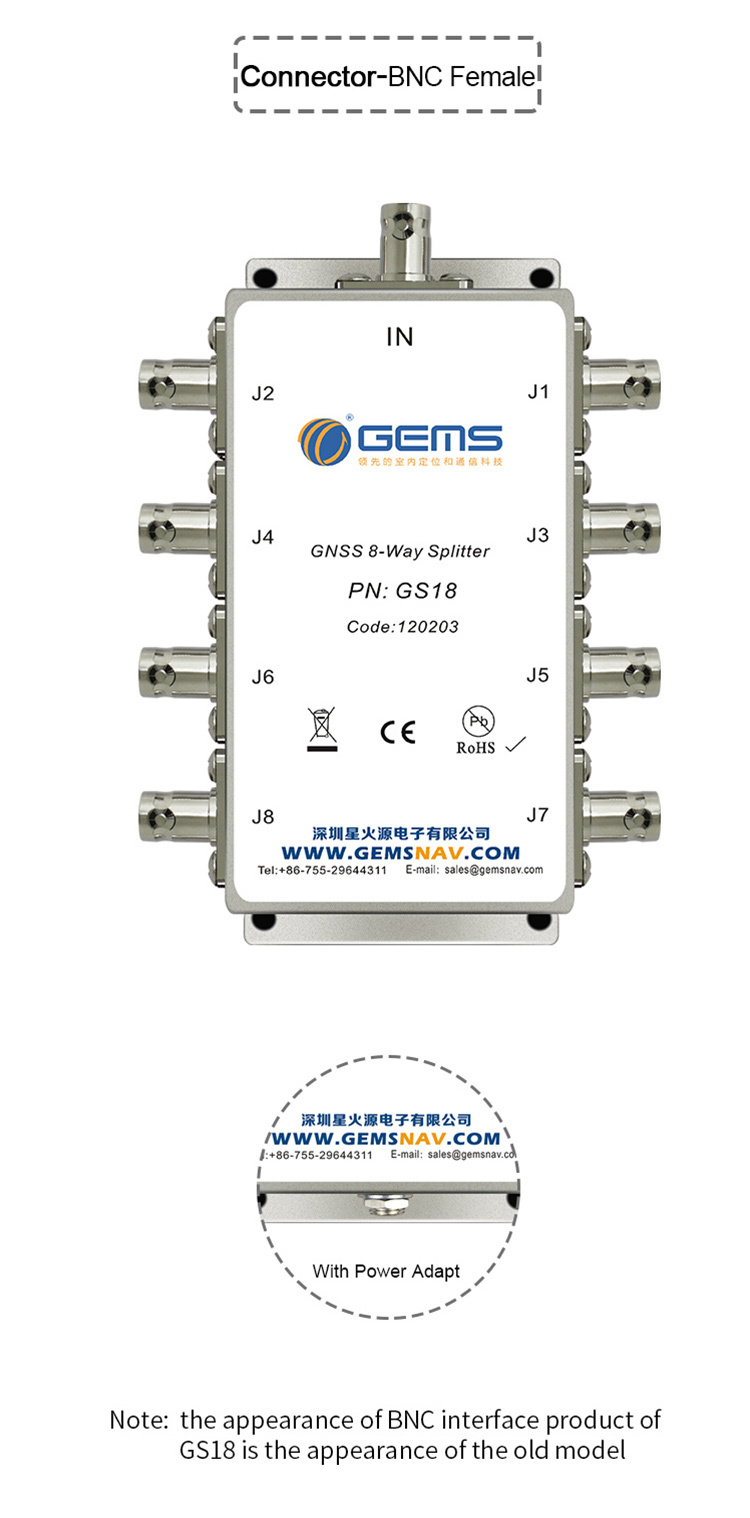

8-Way GPS Splitter GS18

* Design for Mobile Communications; * It is widely used in R&D and production line testing; * Full Band Gain Flatness: 2dB; * Frequency Range: 1150MHz~1650MHz; * System Supported: BEIDOU B1/B2/B3, GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6, SBAS L1/L5, QZSS L1/L2/L5/E6, IRNSS L5, L-band; * All the ports is optionally to DC block or DC pass; * Temp. Range: -40°C ~ 85°C; * High Isolation: > 30dB; * Optional Connectors: N/TNC/BNC/SMA (Female);

Classification:

Product

GPS and GNSS Splitters

产品配件:

GS18_U01601210316601-1E+ROHS_CERTIFICATE_EN.pdf

GS18_U01601210316601-1E+ROHS_TEST_REPORT_EN.pdf

CE_Certificate_NTS2405164S_GPS_Splitter_GS18.pdf

CE_Certificate_NTS2405161E_GPS_Splitter_GS18.pdf

210225_GS18_GS18i_GPS_splitter_EN(2).pdf

Test_Report_NTS2405164S_GPS_Splitter_GS18 CE-LVD.pdf

Test_Report_NTS2405161E_GPS_Splitter_GS18 CE-EMC.pdf

Contact Us BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW
8-Way GPS Splitter GS18
8-Way GPS Splitter GS18
8-Way GPS Splitter GS18
8-Way GPS Splitter GS18
+
  • 8-Way GPS Splitter GS18
  • 8-Way GPS Splitter GS18
  • 8-Way GPS Splitter GS18
  • 8-Way GPS Splitter GS18

  • File size: 2.2MB

  • File size: 511.4KB

  • File size: 635.6KB

  • File size: 598.0KB

  • File size: 702.6KB

  • File size: 1003.0KB

  • File size: 1.9MB

  • File size: 2.2MB

  • File size: 511.4KB

  • File size: 635.6KB

  • File size: 598.0KB

  • File size: 702.6KB

  • File size: 1003.0KB

  • File size: 1.9MB

  • File size: 2.2MB

  • File size: 511.4KB

  • File size: 635.6KB

  • File size: 598.0KB

  • File size: 702.6KB

  • File size: 1003.0KB

  • File size: 1.9MB

  • File size: 2.2MB

  • File size: 511.4KB

  • File size: 635.6KB

  • File size: 598.0KB

  • File size: 702.6KB

  • File size: 1003.0KB

  • File size: 1.9MB

  • File size: 2.2MB

  • File size: 511.4KB

  • File size: 635.6KB

  • File size: 598.0KB

  • File size: 702.6KB

  • File size: 1003.0KB

  • File size: 1.9MB

  • File size: 2.2MB

  • File size: 511.4KB

  • File size: 635.6KB

  • File size: 598.0KB

  • File size: 702.6KB

  • File size: 1003.0KB

  • File size: 1.9MB

  • File size: 2.2MB

  • File size: 511.4KB

  • File size: 635.6KB

  • File size: 598.0KB

  • File size: 702.6KB

  • File size: 1003.0KB

  • File size: 1.9MB

  • Description
  • Videos
  • Download
  • BUY NOW

  • Description

    GS18/GS18i is a GNSS full band Splitter with One Input and Eight Outputs;

    The standard configuration of GS18 is Both IN port and J1 port are DC pass, and the active GNSS antenna connected to the input port is powered by the receiver on the J1 port, J2~J8 ports are isolated from DC and there is a 200Ω DC load to simulate the DC losses of any receiver connected to this port. Optional AC/DC DC power adapter is available;

    The eight output ports of the GS18i are DC pass and power the GNSS antenna at the same time, and there is no 200 Ω DC load on output port in standard configuration. If 200Ω load is needed, you can select this option.



    Features

    Design For Wireless Infrastructure Applications

    Gain :0dB, 15dB   (can be specified )

    Frequency Range: 1150MHz~ 1650MHz

    Response For: BEIDOU B1/B2/B3, GPS L1/L2/L5, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6, SBAS L1/L5, QZSS L1/L2/L5/E6, IRNSS L5, L-band

    High Isolations > 30dB

    Specifications

    Parameter

    Conditions

    Min

    Typ

    Max

    Units

    Freq. Range

    Ant – Any Port

    1150



    1650

    MHz

    In &Out Imped.

    In, all output ports



    50



    Ω

    Gain

    0dB

    In- Output ports, ,Unused Ports - 50Ω

    -1

    0

    1

    dB

    Amplified(15dB)

    14

    15

    16

    Input SWR

    All Ports 50Ω





    2.0:1

    -

    Output SWR

    All Ports 50Ω





    2.0:1

    -

    Nois Figure- Amplified







    1.5

    dB

    Gain Flatness

    (Amplified)







    1.5

    dB

    Amp. Balance

    |J1-J2|, Ant- Any Port, Unused Ports-50Ω





    0.5

    dB

    Phase Balance

    Phase(J1-J2), Ant- Any Port, Unused Ports-50Ω





    1.0

    deg

    Group Delay Flatness







    1

    ns

    Isolation



    Amplified



    Adjacent Ports: In - 50Ω

    25





    dB

    Opposite Ports: In – 50Ω

    34





    Gain:10dB

    Adjacent Ports: In - 50Ω

    25





    Opposite Ports: In - 50Ω

    34





    DC IN

    Wall  Mount transformer

    9

    12

    16

    VDC

    DC input from J1~J8

    DC Block, All ports with a 200Ω Load

    3.3

    5

    16

    VDC

    PASS DC, Amplified

    3.3

    5

    16

    PASS DC, Passive

    3.3

    5

    16

    Powered, to be specified







    Device Current







    16

    mA

    Current

    Pass DC, No Powered configuration, DC input on J1





    250

    mA

    Powered, to be specified







    mA

    Max RF Input

    (Amplified)

    Max RF input without damage





    0

    dBm

    Operating Temperature



    -40



    85

    ℃
