2-Way GPS Splitter GS12

√ Design for Mobile Communications; √ Frequency Range: 1150MHz~1650MHz; √ Gain: 0dB~21dB (Be Customized); √ Full Band Gain Flatness: 2dB; √ System Supported: GPS L1/L2/L5, GLONASS L1/L2/L3, BEIDOU B1/B2/B3, Galileo E1/E5a/E5b/E6, SBAS L1/L5, QZSS L1/L2/L5/E6, IRNSS L5, L-band; √ High Isolation: > 30dB; √ Standard Configuration: Pass DC in J1, Block DC in J2; √ All the ports is optionally to Pass DC or block DC; √ Optional Connectors: N/TNC/BNC/SMA (Female); √ Temp. Range: -40°~85°;

Classification:

Product

GPS and GNSS Splitters

产品配件:

120201_GS12_GPS_Splitter_EN.pdf

Vibration_testing_GPS_Splitter_GS12.pdf

Contact Us BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW
2-Way GPS Splitter GS12
+
  • 2-Way GPS Splitter GS12
+
  • 1 2-Way GPS Splitter GS12(1).jpg

  • File size: 865.9KB

  • File size: 1.5MB

  • File size: 865.9KB

  • File size: 1.5MB

  • Description
  • Videos
  • Download
  • BUY NOW

  • GS12 is a GNSS full band Splitter with One Input and two Output, using high-quality flanged RF connectors, durable and reliable;

    The GS12 comes standard with J1 through DC, powering active GNSS antennas connected to the input port, J2 ports is isolated from DC and there is a 200Ω DC load to simulate the DC losses of any receiver connected to this port. Optional AC/DC DC power adapter is available.

    What is ifferences between GS12 and GS12-DC
    Part numberGS12GS12-DC
    Pass DC portsIN, J1IN
    Power Supply PortJ112V power port
    Block DC PortsJ2 with 200 Ω loadJ1,J2 with 200 Ω load

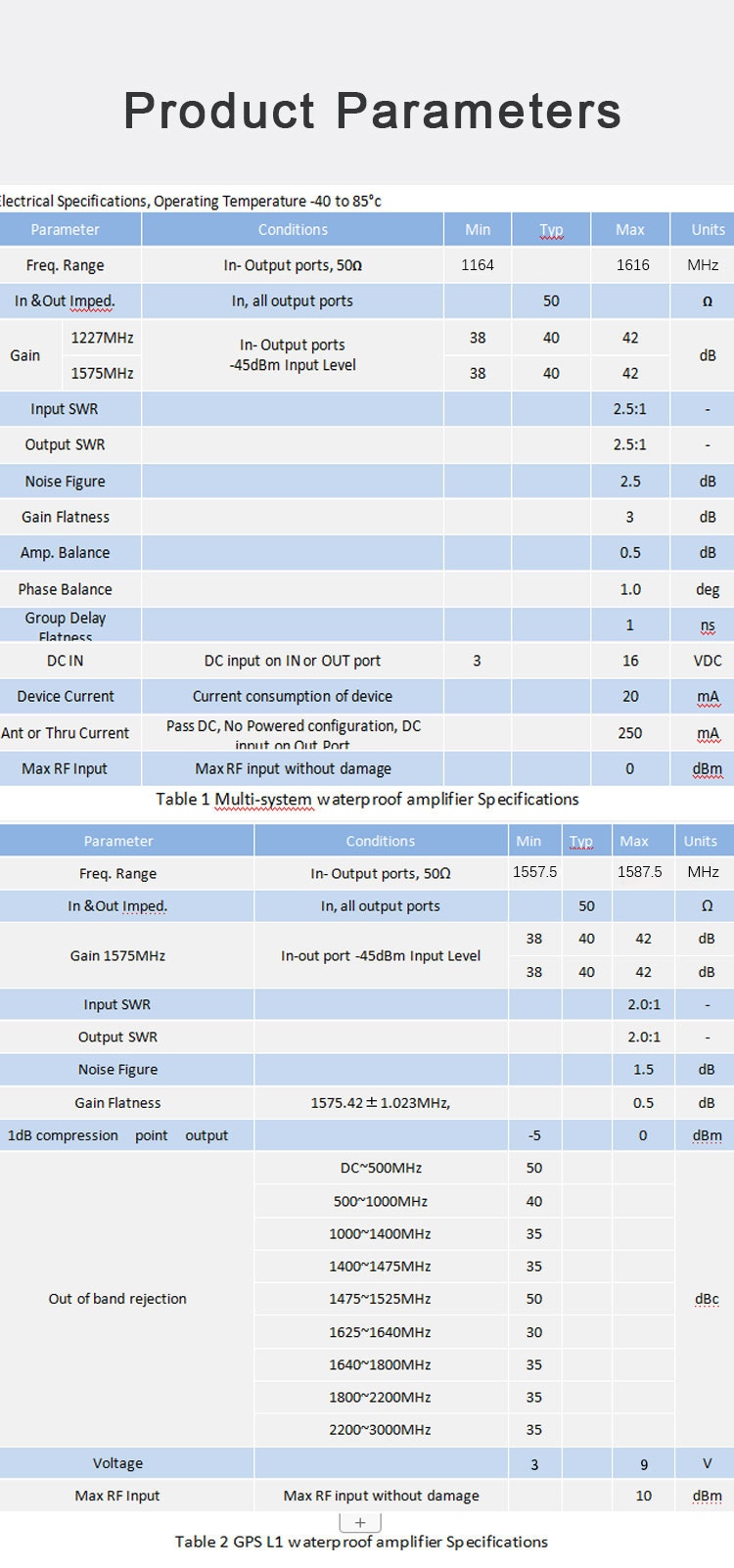

    【Technical Parameters】

    Design for Mobile Communications

    Gain: 0dB~21dB (Be Customized)

    High lsolations > 30dB

    Excellent Gain

    Flatness Gain L1-L2 < 2dB

    ROHS/WEEE Compliant

    Response For:

    *GPS:L1,L2,L2C,L5

    Glonass:G1,G2*Galileo:L1,E1,E2,E5(E5a,E5b),E6

    Beidou2:B1,B2,B3;*IRNSS:L1,L5;

    High Isolations > 30dB
