Quick Setup GPS Repeater Kit | Q-GL1
Classification:
Product
GPS and GNSS Repeater Kits
Product accessories:
- DESCRIPTION
- Videos
- Download
- BUY NOW
-
【Description】
- Q-GL1 is a simple GPS Repeater Kit , one transmitting antenna transmit GPS L1 signal. Main function is to quick layout GPS Indoor Coverage, Exhibition, the Customer Demonstration and other occasions .
- This is single point solution, covers 5-20 meters at radius(by increasing the amplifier according to methods and under field conditions,building height and other certain condition reach a radius of 20 meters).
- Quick layout GPS Indoor Coverage, Exhibition, Customer Demonstration etc
- Support GPS L1

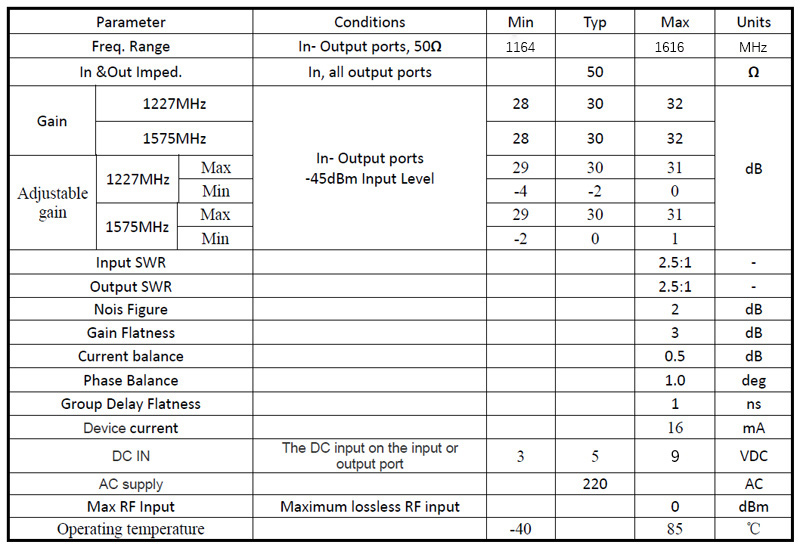

【Specifications 】
Electrical Specifications, Operating Temperature -40 to 85°c
Conditions
Min
Typ
Max
Units
Freq. Range
In- Output ports, 50Ω
1150
1650
MHz
In &Out Imped.
In, all output ports
50
Ω
Gain
1227MHz
In- Output ports
-45dBm Input Level
28
30
32
dB
1575MHz
28
30
32
Adjustable gain
1227MHz
Max
29
30
31
Min
-4
-2
0
1575MHz
Max
29
30
31
Min
-2
0
1
Input SWR
2.5:1
-
Output SWR
2.5:1
-
Nois Figure
2
dB
Gain Flatness
3
dB
Current balance
0.5
dB
Phase Balance
1.0
deg
Group Delay Flatness
1
ns
Device current
16
mA
DC IN
The DC input on the input or output port
9
12
16
VDC
AC supply
220
AC
Max RF Input
Maximum lossless RF input
0
dBm
Operating temperature
-40
85
℃
Standard Configurations
GPS Antenna: TIMING 4200,1 ea.
Gain Controller.GA30V,1 ea;
Cable Assembly:XHY240,20M,1 ea
Lightningprotector:N-JK-G,1 ea;
Antenna:L1P ,1 ea.
System Schematic
1. GPS Antenna(TIMING 4200) be installed on roof of the building;
2. Cable assembly XHY240 fixed along the out wall, one terminator connects Protector , the other into indoor connects Gain controller. In some special environment, select PE or PVC material plastic pipe to protect the cable assembly is quite sensible;
3. Antenna L1P10 be fixed on the Gain controller through stand .
4. According to the actual environment, you can adjust positions of some parts, which can make you the adjust, change and overhaul more easily.
GPS Repeater
GNSS Repeater
