Model:PB0307 shielding box (with workbench)
1) Application:
IT IS SUITABLE FOR BUILDING MODULE AND TERMINAL TEST SOLUTION PLATFORMS IN THE FIELDS OF SMART PHONES, WI-FI, BLUETOOTH, SMART GRID EQUIPMENT, AUTOMOTIVE ELECTRONICS, DRONES, SMART HOMES, ETC.The shielding box is made of more than a dozen strict processes such as CNC machining, electrostatic spraying paint, assembly and commissioning, testing and inspection, etc., which has the advantages of high shielding efficiency, reliable structure and stable performance.
2) Main features:
Door opening method: manual side opening door;
Configure the workbench (with drawers);
Integral welding box, good sealing, good shielding effect, reliable and solid design;
All data ports and power signals are EMI filtered;
Equipped with base casters, easy to move;
Inside paste 10MM flat absorbing cotton;3) Specifications:
SHIELDING EFFECT: ≥75DB, FREQUENCY: 433MHZ-6GHZ;
Color: painted corrugated white (optional);
Material: sheet metal (optional);
Dimensions: 880 (W) * 850 (D) * 1452 (H) MM, including workbench
Box size:880(W)*850(D)*700(H)MM;
Working size: 800(W)*800(D)*650(H)MM;
BOX SIZE:740(W)*590(H)MM;
Table size: 880(W)*850(D)*750(H)MM;

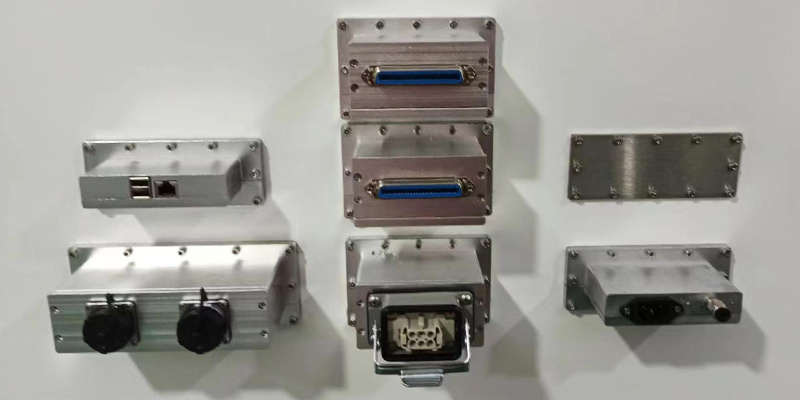

Interface: USB2.0*4, RJ45*1, 220VAC*1, M6 tracheal port *1, 6PIN heavy load plug*1, 12PIN airliner*2, 50PIN airplug*2;
Number of filter openings: 5PCS, spare port reserved 1PCS;
Remarks: Can be customized according to customer requirements.
