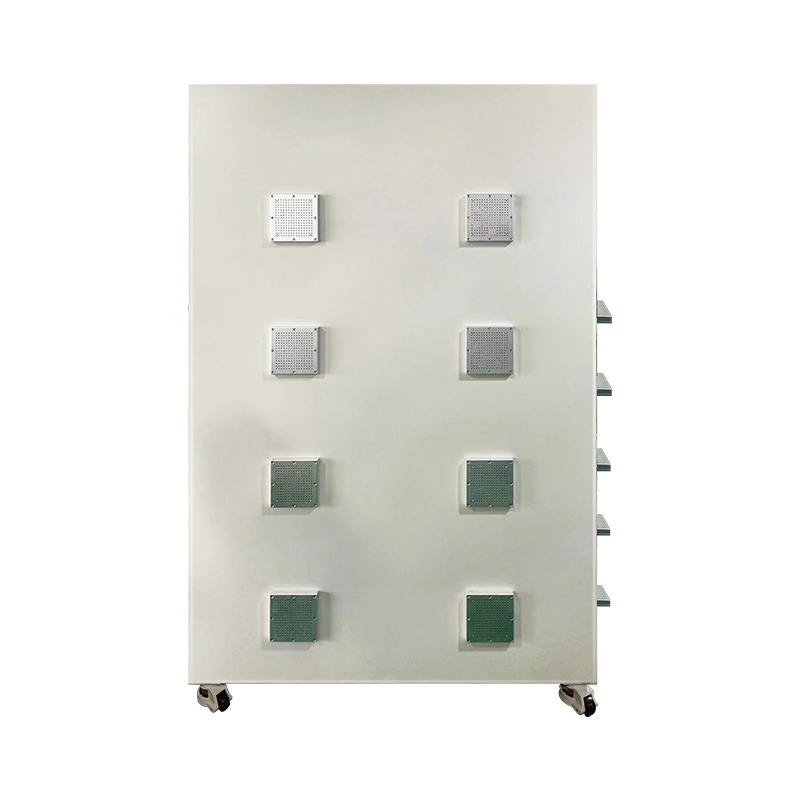

Sliding Door 8-Shelf Shielding Cabinet

√ Operation mode: manual side opening door; √ Tight handle, double point locking, integral welding box, excellent shielding effect; √ 8-layer partition: use unshielded partition, each layer communicates with each other; √ With base casters, easy to move; √ With waveguide window, good heat dissipation; √ 30MM spike absorbing cotton pasted inside;

Classification:

Product

RF Shielding And Sound Insulation

RF Shield Box

Product accessories:

Contact Us BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW
+
  • XHY-PB716BE-4(1).jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW

  • Model: XHY-PB716BEJS-PB716BE(Sliding Door 8-layer Shielding Cabinet)

    1) Applications.
    It is mainly used for function test,power test, sensitvty test and electrical perormance test of large wireless electronic products and wireles communication productsSuch as: wireless servers, notebook computers. walkie-talkies, base stations and so on

    2) Main features:
    Mode of action: manual side door opening;
    urgent handle, double-point locking, integral welding box, excellent shielding effect.
    8-layer partition: using non-shielded partition, each layer intercommunicates signals.
    With base casters, easy to move,
    With wavequide window, good heat dissipation,
    Internal paste 30MM spike wave-absorbing cotton.
    3) Specification parameters

    3) Specifications:
    Shielding effect:z75DB, frequency:0.8-6GHZ
    Colorbeige (optional),
    Material:sheet metal (optional)
    Exterior dimensions:D795*W1360H2165M
    Cabinet size:D670W1300*H1900MM
    Internal dimension: D600*W1230 H1830MM
    Interface module: Each layer. 4 N female, 1 power port, 1 network port, 1 3-hole waveguide, 2 USB3.0 portsiConfiguration: exhaust fan8, waveguide window*11, socket*16, 5-hole plug*8
    Remarks:Can be customized according to customers' requirements.
