Microwave Obscura Box | PB0322

√ Progressive process structure; √ Efficient shielding effect √ Can install the rotating fixture of the device under test;

Classification:

Product

RF Shielding And Sound Insulation

RF Shield Box


+
  • 888(1).jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW
  • 1) Application:

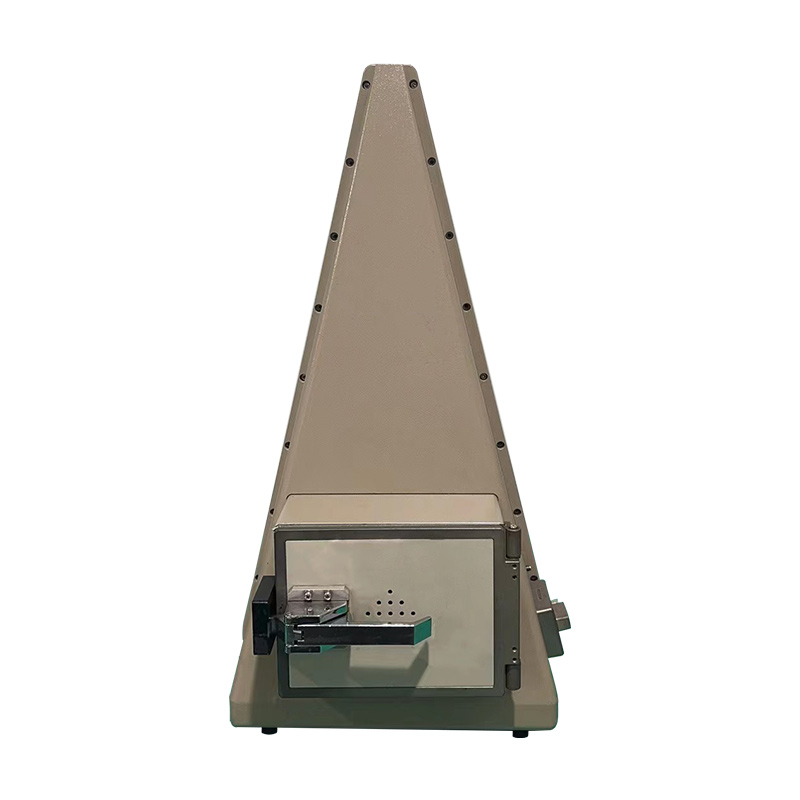

    The effective UHF TEM cavity of microwave camera obscura provides a reliable and stable electromagnetic field for testing small RF devices such as pagers, GPS receivers, mobile phones, etc.

    An external test signal loaded through the input port generates a reliable, stable, predictable TEM test field inside the cavity.

    2) Main features:
    Progressive process structure;
    Efficient shielding effect
    Can install the rotary fixture of the device under test;

    3) Specifications:
    Standing wave: < 1.7, 100MHZ~3GHz; Road loss: 22dB typical; Shielding effect: >80dB less than 2GHz, 70dB 2GHZ-3GHz;
    EFFECTIVE CAVITY HEIGHT: 220MM;
    Test point field strength: 13dBuV/m at 1uV input;
    Data interface: external DB25(p) internal DB25(s);
    RF interface: external N(f), SMA(f), internal SMA(f);
    DIMENSIONS:(L)380X(W)345X(H)660 MM;
    WORKING SIZE: (L)250X(W)230X(H)200 MM;
    DOOR SIZE: (W)176X(H)130 MM;
    Surface color: coffee (optional);
    Box material: sheet metal (optional);
    Weight: about 19KG;
    Remarks: Can be customized according to customer requirements.
