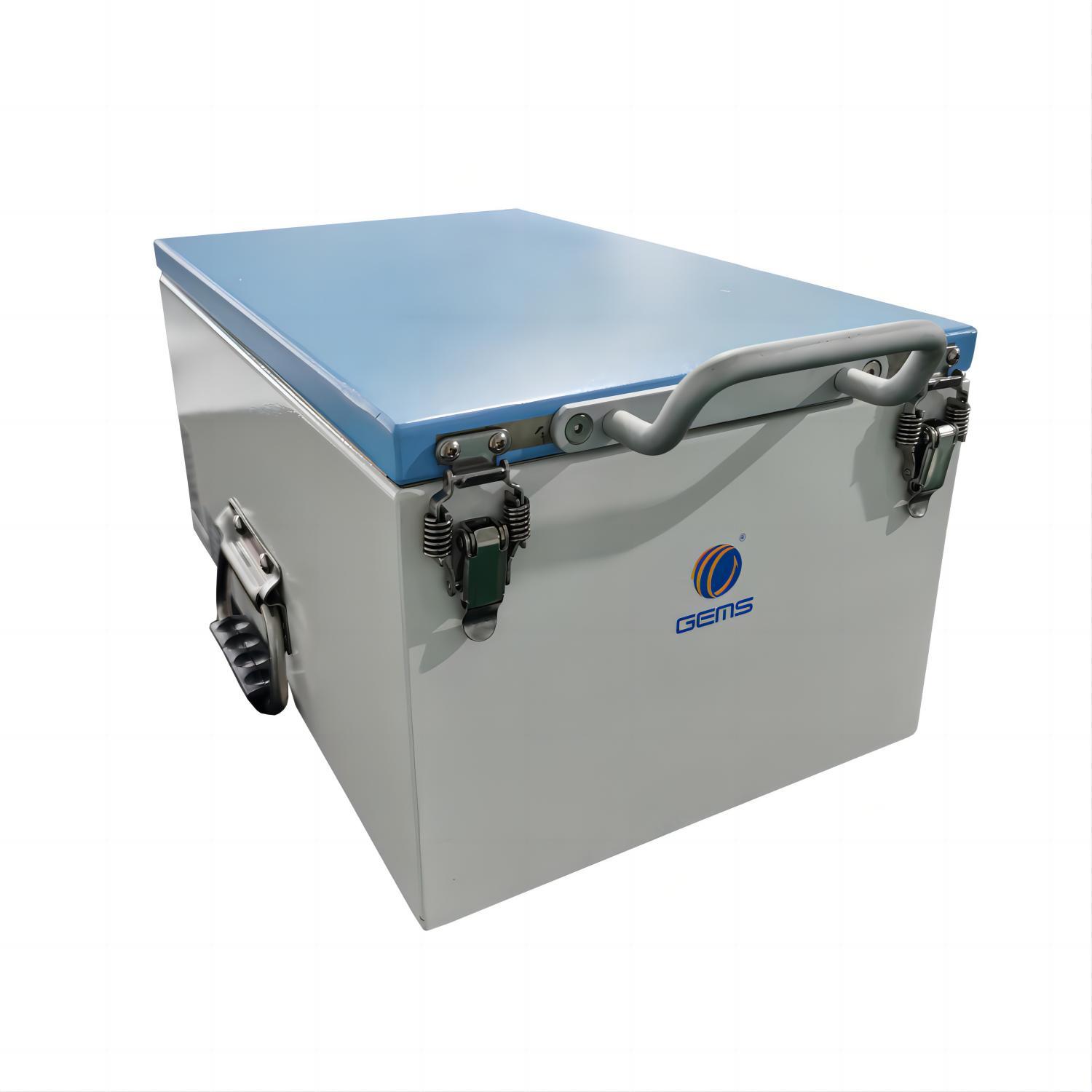

Manual shielding box | PB0321
Classification:
Product
RF Shielding And Sound Insulation
RF Shield Box
Product accessories:
- DESCRIPTION
- Videos
- Download
- BUY NOW
-

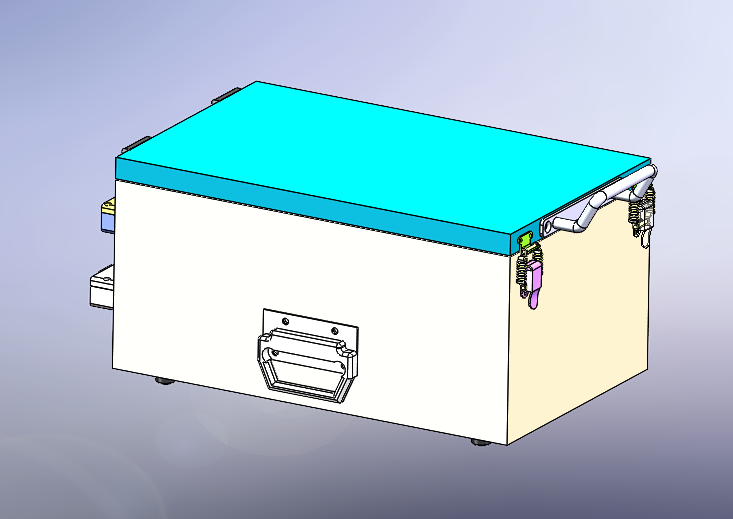

1. Product Introduction:
It is suitable for building module and terminal test solution platforms in the fields of smart phones, WI-FI, bluetooth, smart grid equipment, automotive electronics, drones, smart homes, etc. The shielding box is made of more than a dozen strict processes such as CNC machining, electrostatic spraying paint, assembly and commissioning, testing and inspection, etc., which has the advantages of high shielding efficiency, reliable structure and stable performance.

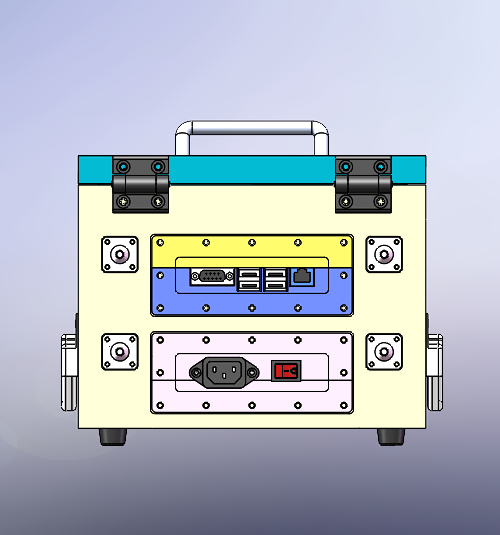

Number
Part name
Number
Part name
1
doorknob
Close/open doors manually
5
RS232 interface
2
Box handle
6
Network port interface RJ45
3
AC220V socket
7
SMA-SMA
4
USB2.0 interface
2.Technical indicators：
Number
project
Brief description of the content
1
Shielding effect
80dB@2.4GHz，75dB@5.8GHz,70dB@5.8~8GHz
2
Interface type
USB2.0*2，DB9（RS232）*1,RJ45*1,220VAC*1,SMA-SMA*4
3
Number of filter openings
2PCS
4
Control mode
Manual
5
Operating temperature
Work at room temperature
6

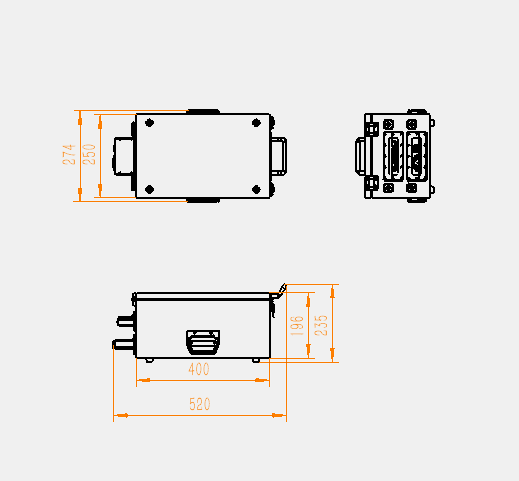

Box size
250(W)*400(D)*195(H)mm
7
Working size
230(W)*360(D)*165(H)mm
8
Form factor
274(W)*520(D)*235(H)mm，Including foot height, interface length
9
Appearance color
Painted corrugated white + sand blue (lid)
10
Key features
① All data ports and power signals are EMI filtered.
② As a manual clamshell type, the welding process is not limited, the sealing is good, the shielding effect is good, and the design is reliable and solid.
③ Save operation time and improve work efficiency.
3.Shielding box operation process：
Shielding box manual opening→ manual feeding→ shielding box manual closing→ shielding test start→ shielding test is completed→ shielding box is manually opened.
