Manual Shielding Box|PB0313

√ Suitable for wireless communication test, EMI test, EMS test √ Coupling test, RF function test, WIFI test √ Shielding effect: 800M Hz-6GHz≥70dB √ Operation mode: manual type √ MATERIAL: 2MM STAINLESS STEEL PLATE

Classification:

Product

RF Shielding And Sound Insulation

RF Shield Box

Product accessories:

Contact Us BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW
+
  • PB0313.jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW

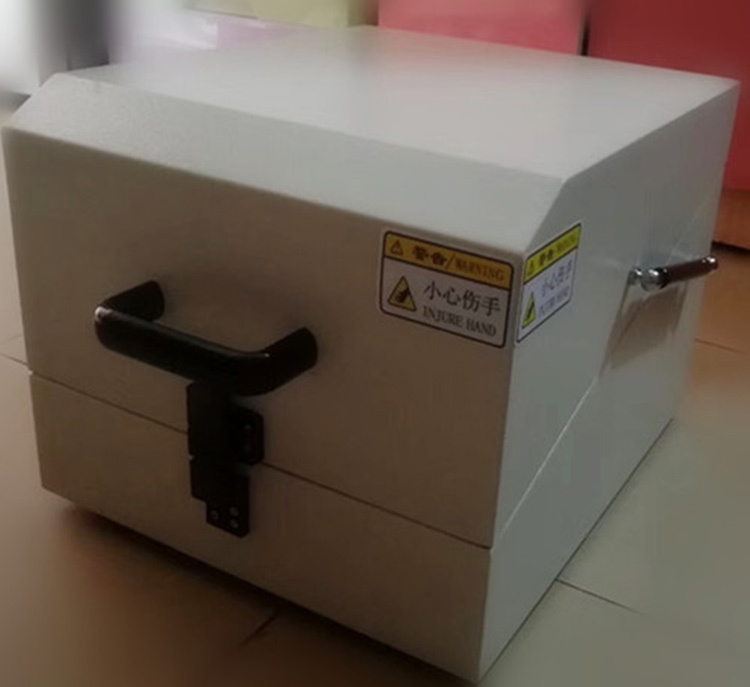

  • Product Name: Shielding Box
    Product model: PB0313
    Product Code: 12100313
    Operation mode: manual
    1. Main functions and scope of application:
    This shielding box is suitable for wireless communication testing
    EMI test, EMS test
    Coupling test, (coupled antenna additional)

    RF function test WIFI test



    2. Structural performance index:

    Operating frequency 800MHZ-6GHz
    Shielding effect 800M Hz-6GHze70dB
    Box size L380*340*H260mm
    Working size L350320*H240mm
    Material 2MM stainless steel plate
    net weight 12KG
    Appearance color Computer gray

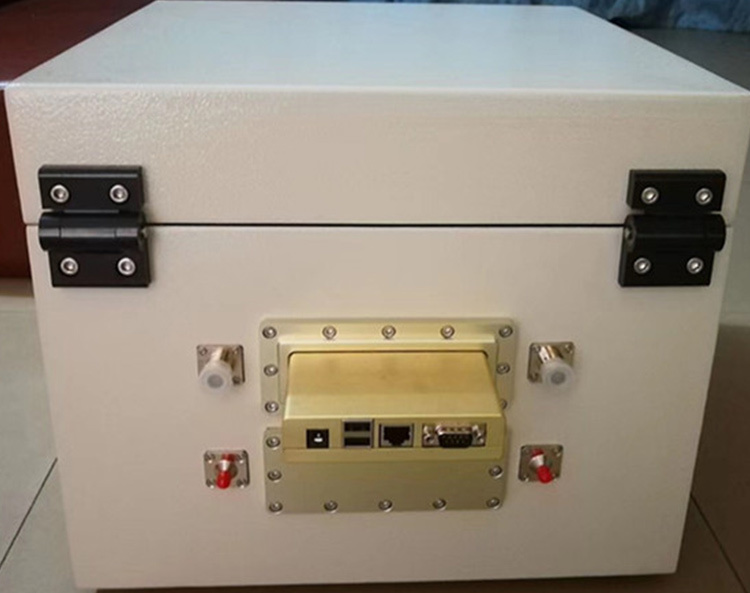

    3. Wiring port

    Interface name Interface specifications
    SMA-SMA The characteristic impedance is 50 ohms, and the frequency range is 0-6GHz
    DB9 4.5Mbps, withstand voltage DC 0-60V/1.3A
    USB 2.0 Standard USB 2.0 data transmission 480Mbps/1.5A
    DC power supply direct current0-100V/3A
    Internet Standard 1000M network port, data transmission/1.6A
    Instead of plates spare
