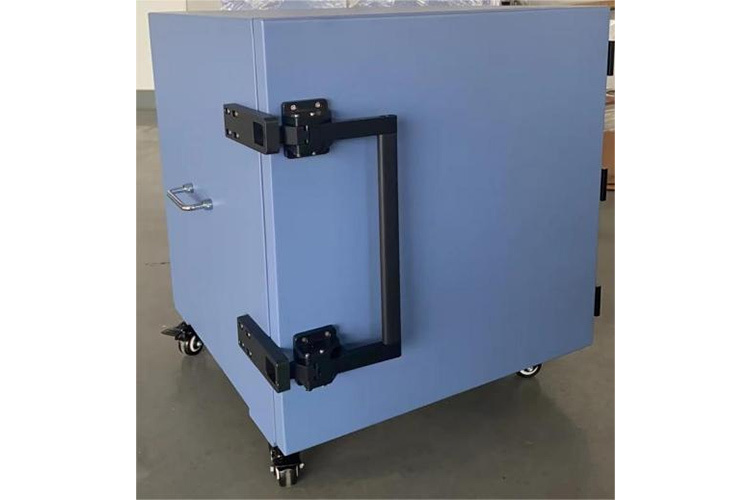

Manual Shielding Box|PB0310

√ Suitable for wireless communication test, EMI test, EMS test √ Coupling test, RF function test, WIFI test √ Shielding effect: 800M Hz-6GHz≥70dB √ Operation mode: manual type √ Material: aluminum alloy

Classification:

Product

RF Shielding And Sound Insulation

RF Shield Box

产品配件:


+
  • PB0310.jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW
  • Product Name: Shielding Box
    Product model: PB0310
    Product code: 12100310
    Operation mode: manual front side opening door
    1. Main functions and scope of application:
    This shielding box is suitable for wireless communication testing
    EMI test, EMS test
    Coupling test, (coupled antenna additional)
    RF function test WIFI test

    2. Structural performance index:

    Operating frequency 800MHZ-6GHz
    Shielding effect 800M Hz-6GHz≥70dB
    Box size L530*W530*H530mm
    Working size L500*W500*H500mm
    Material 2MM stainless steel plate
    net weight 40KG
    Appearance color blue



    3. Wiring port

    Interface name Interface specifications
    SMA-SMA The characteristic impedance is 50 ohms, and the frequency range is 0-6GHz
    DB9 4.5Mbps, withstand voltage DC 0-60V/1.3A
    USB 2.0 Standard USB 2.0 data transmission 480Mbps/1.5A
    DC power supply DC 0-100V/3A
    Internet Standard 1000M network port, data transmission/1.6A
    AC220V AC power supply 10A
