32-Way Rackmount GPS Active Splitter RGS132

√ Full GNSS Band:GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC/OmnStar; √ Frequency Range:1150~1650MHz; √ Gain(amplified):0dB ~ 30dB(Be specified); √ Pass DC to In Port(Standard); √ Block DC on In Port(Be Specified); √ DC Power Adaptor(Standard); √ High Isolation: >30dB; √ Low Noise Figure: <2.5dB √ Avaible In TNC, SMA, BNC and N Connectors. √ 2U Housing: SMA, TNC , BNC 2U, √ 2U Housing: N

Classification:

Product

GPS and GNSS Splitters


+
  • 1(17).jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW
  • Description

    The RGS132 GPS Splitter is a one-input, thirty two-output GPS device. This product typically finds applicationwhere an input from an active GPS roof antenna is split evenlv between thirty two receiving GPS units. In this scenariothe RGS132 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an activeGPS antenna on that port. Output ports(J2-J32) would feature a 200 Ohm DC load to simulate an antenna DC currentdraw for any receiver connected to those ports

    The most common application is the input from an active GPS/GNSS roof antenna or GPS simulator is equaly split to thirty two receivingg GPS unitsThe RGS132 wil support long-asting trouble free deployment in a smal cell wireless and/or CORS center stations. The device makes it possible touse a single GPS/GNSS referencing antenna for synchronization systems. increasing capacity without increasing GPS/GNSS antennas or cablingrequirements



    Technical Parameters

    ▷Full GNSS Band:GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC;

    ▷Frequency Range:1164~1616MHz;

    ▷Gain(amplified):0dB ~ 30dB(Be specified);

    ▷Pass DC to In Port(Standard);

    ▷Block DC on In Port(Be Specified);

    ▷DC Power Adaptor(Standard);

    ▷High Isolation: >30dB;

    ▷Low Noise Figure: <2.5dB

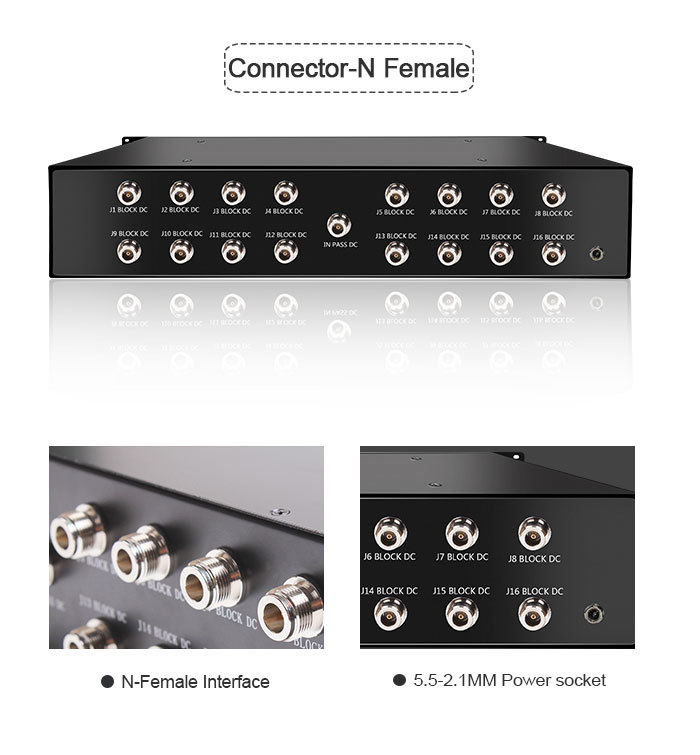

    ▷Avaible In TNC, SMA, BNC and N Connectors.

    ▷Housing: SMA 1U, Others 2U



    Specifications

    Electrical Specifications, Operating Temperature -40 to 85C

    Parameter Conditions Min Type Max Units
    Freq. Range Ant - Any Port 1164   1616 MHz
    In &Out Imped. In, all output ports   50   Ω

    Gain(2)

    0dB In- Output ports, ,Unused Ports - 500 -1 0 1 dB
    10dB 9 10 11
    Input SWR All Ports- 50Ω     2.0:1 -
    Output SWR All Ports- 50Ω     2.0:1 -
    Nois Figure- Amplified Ant- Any Port, Unused Ports-500     3 dB
    Gain Flatness(Amplified) L1-L2,Ant- Any Port, Unused Ports-500   - 3 dB
    Amp. Balance J1-J2l. Ant- Any Port, Unused Ports-500     0.5 dB
    Phase Balance Phase(J1-J2) Ant- Any Port, Unused Ports-500   - 1.0 deg
    Group Delay Flatness       1 ns
    Isolation Amplified Adjacent Ports: In -50Ω 28     dB
    Opposite Ports: In - 50Ω 34
    Gain:10dB Adjacent Ports: In - 50Ω 28
    Opposite Ports: In - 50Ω 34
    AC IN Wall Mount transformer   230   VAC
    DC IN DC Block Al1 ports with a 200Ω Load     14 VDC
    PASS DC.Amplified 3   16
    PASS DC, Passive     16
    Powered, to be specified
    Device Current       80 mA
    Current Pass DC, No Powered configuration, DC inputon J1     250 kA
    Powered, to be specified
    Max RF Input (Amplifed) Max RF input without damage     0 dBm



    Product details
