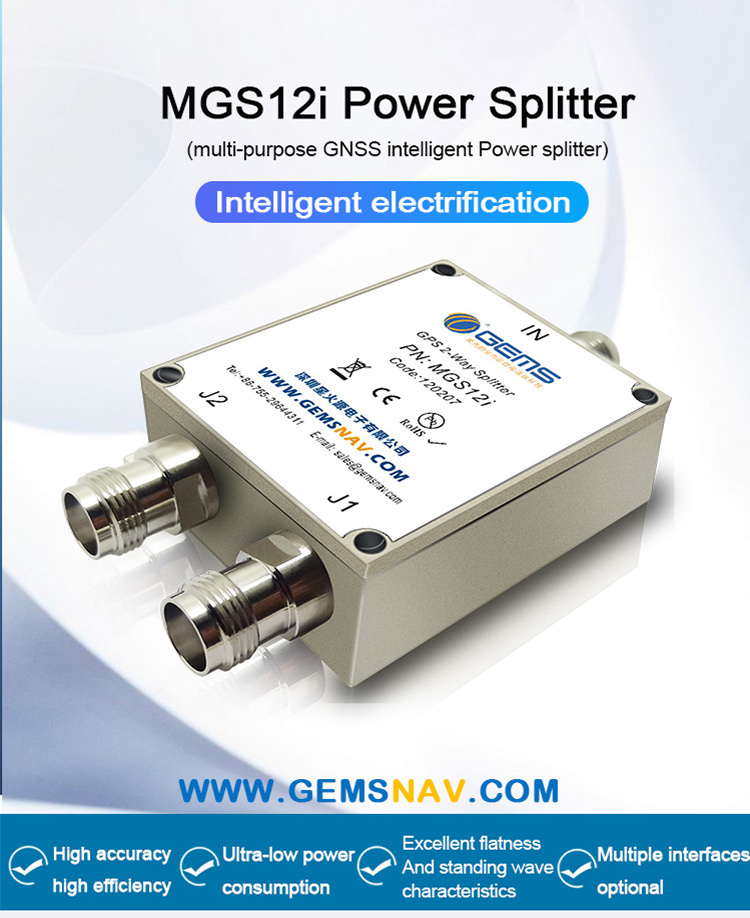

2-Way GPS Splitter MGS12i

√ Pass DC from J1 and J2 to In Port; √ Full GNSS band Supported √ Passed The 96-Hour Salt Spray Test(Optional) √ Frequency Range:1150~1650MHz; √ Gain(amplified):0dB ~ 21dB(be specified) √ Passive: -4.5dB (be specified); √ High lsolation:>28dB. √ Low Noise Figure: <1.5dB

Classification:

Product

GPS and GNSS Splitters


+

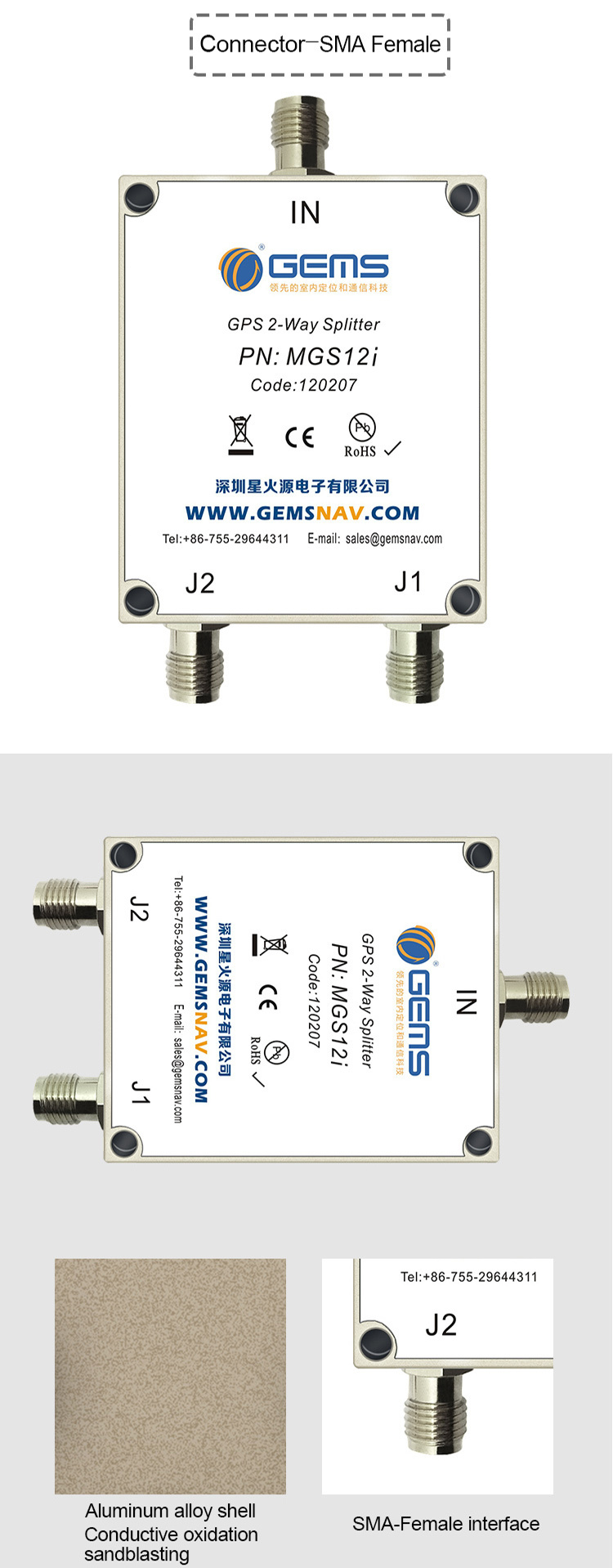

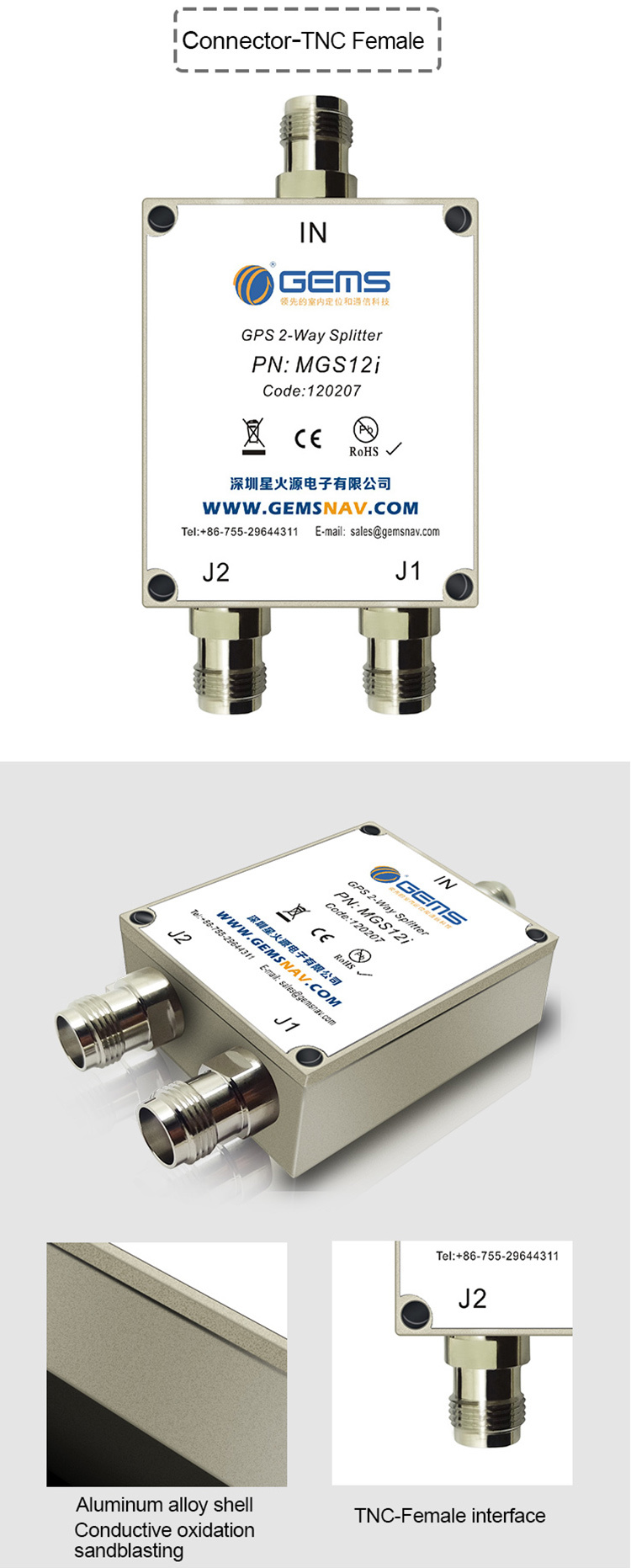

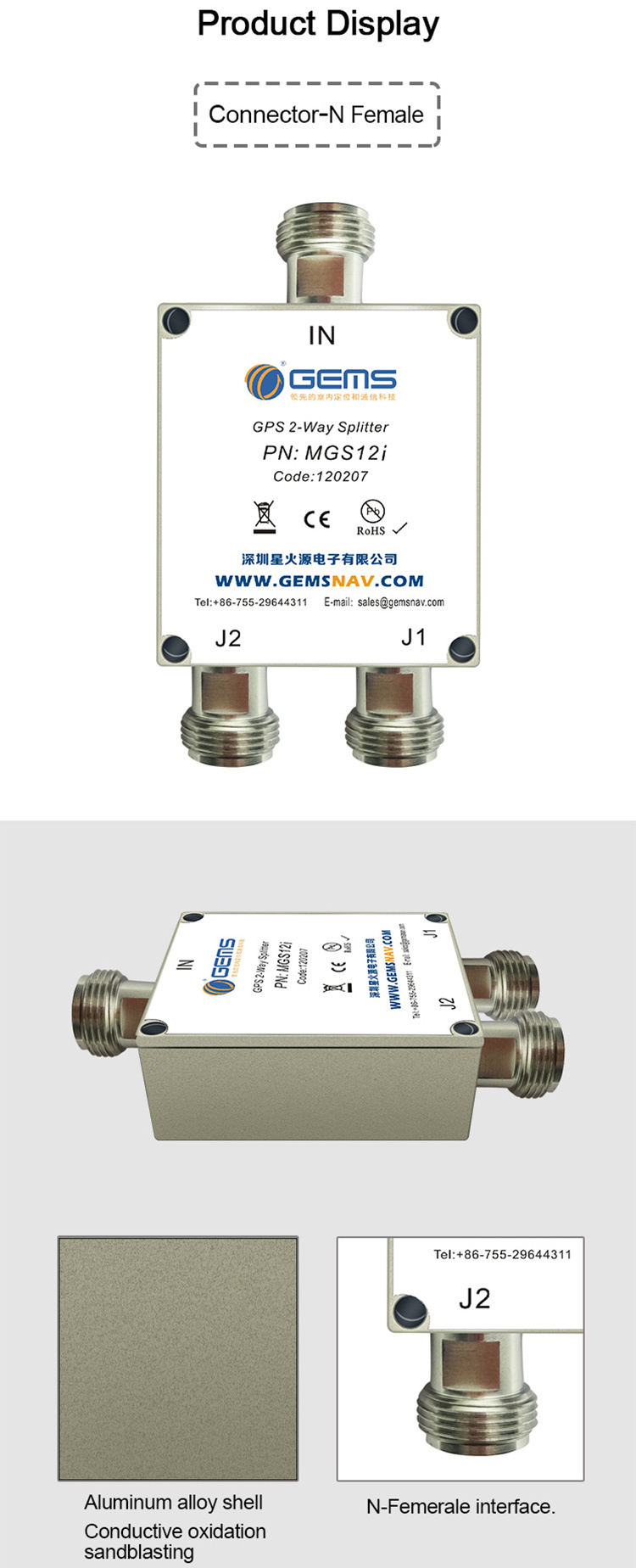

  • MGS12i-100.jpg

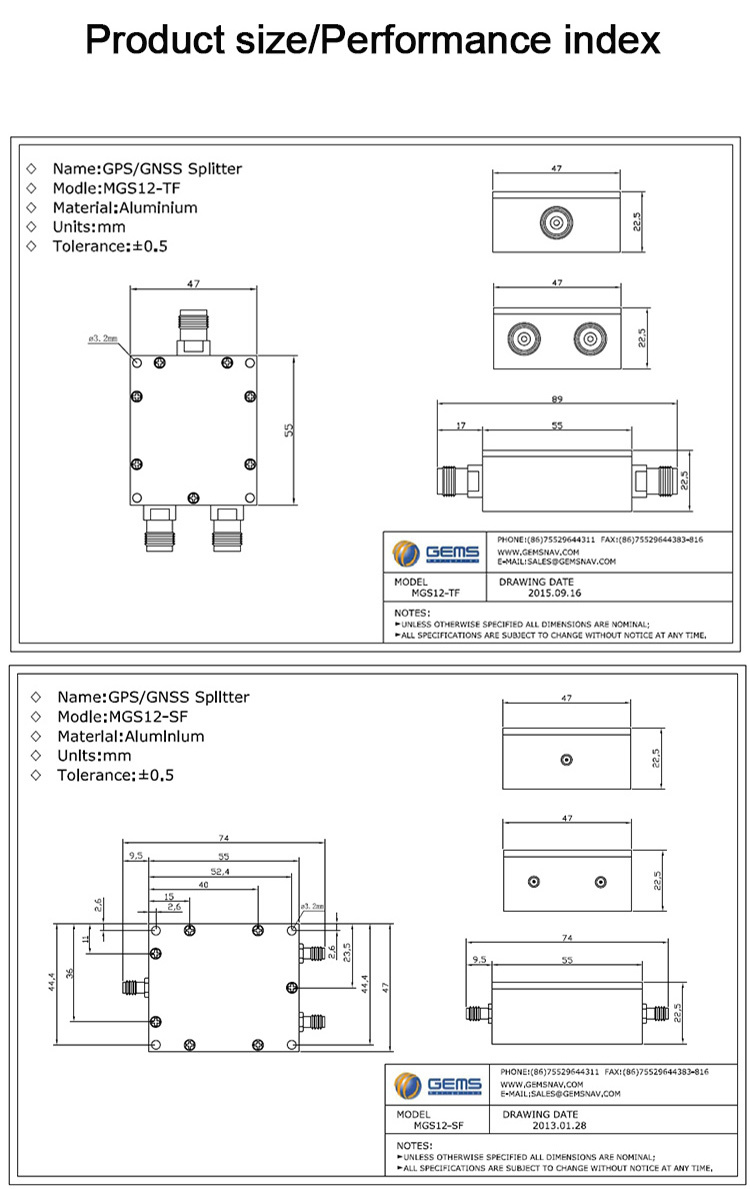

  • MGS12-尺寸.jpg
  • MGS12-尺寸2.jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW
  • 【Description】

    The MGS12i is a GPS and GNSS splitter with one input and two outputs, which usually divides the received signal from the active GPS receivingantenna into two outputs for GPS receiving equipment.

    Both outputs of the MGS12i are powered on at the same time. The power divider internally selects the port for powering the active GPS antenna bycomparing the voltages

    When the voltage values of the two output ports are diferent, the higher voltage port wil be used to supply power to the active GPS antenna. Theother port will have a 200 Ohm DC load to simulate any receiver antenna connected to this port DC loss.

    When the two output ports have the same volage value, the J1 port is used by default for power supply, the J2 port will have a 200 Ohm DC load

    Specifications

    Parameter

    Conditions

    Min

    Typ

    Max

    Units

    Freq. Range

    Antenna - any port

    1150



    1650

    MHz

    In &Out Imped

    In, all output ports



    50



    Ω

    Gain

    0dB

    Input output terminal, unused port -50 Ω

    -1

    0

    1

    dB

    zoomed-in

    19

    21

    23

    Attenuation Loss Passive Passive

    Input output terminal, used port -50 Ω

    3.5

    4.5

    5.5

    dB

    Input SWR







    2.0:1

    -

    Output SWR







    2.0:1

    -

    Noise Figure (enlarged)







    1.5

    dB

    Gain Flatness

    0~10dB







    1



    10~21dB







    2

    dB

    passive





    1

    dB

    Current balance







    0.5

    dB

    Phase equilibrium







    1.0

    deg

    Ggroup delay flatness







    1

    ns

    Isolation

    passive

    All Ports- 50Ω

    9





    dB

    0~10dB



    30





    10~21dB



    11





    DC Input

    MGS12i standard equipment

    3.3

    5

    16

    VDC

    MGS12i Output port has 200Ω load resistor

    3.3

    5

    9

    MGS12

    3.3

    5

    16

    Passive passive

    3.3

    5

    16

    Equipment current

    Standard configuartion





    16

    mA

    Output ports with 200Ω resistance





    100

    mA

    Maximum supply current

    Power through DC outputs





    250

    mA

    Operating Temperature



    -40



    85

    Maximum RF Input

    Amplified

    Maximum lossless RF input





    0

    dBm

    Passive





    30



    picpicpicpicpicpi

  • GPS Splitter MGS12/MGS12i performance testing.
