GPS Over Fiber System RGOF Serial

√ Frequency range:1150~1650 MHz; √ Gain:Fixed gain of 40dB; √ Transmit power(TX): 8dBm; √ Receive sensitivity(RX): -30dBm; √ Optical fiber long-distance up to 60KM; √ Dual 48V DC input(Optional) ; √ 12V DC input ;

Classification:

Product

GPS and GNSS Over Fiber Systems

Product accessories:

121003_RGOF_Serial_EN.pdf

预览
Contact Us BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW BUY NOW
+
  • GOF101.jpg

121003_RGOF_Serial_EN.pdf

预览
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW

  • 【Description】

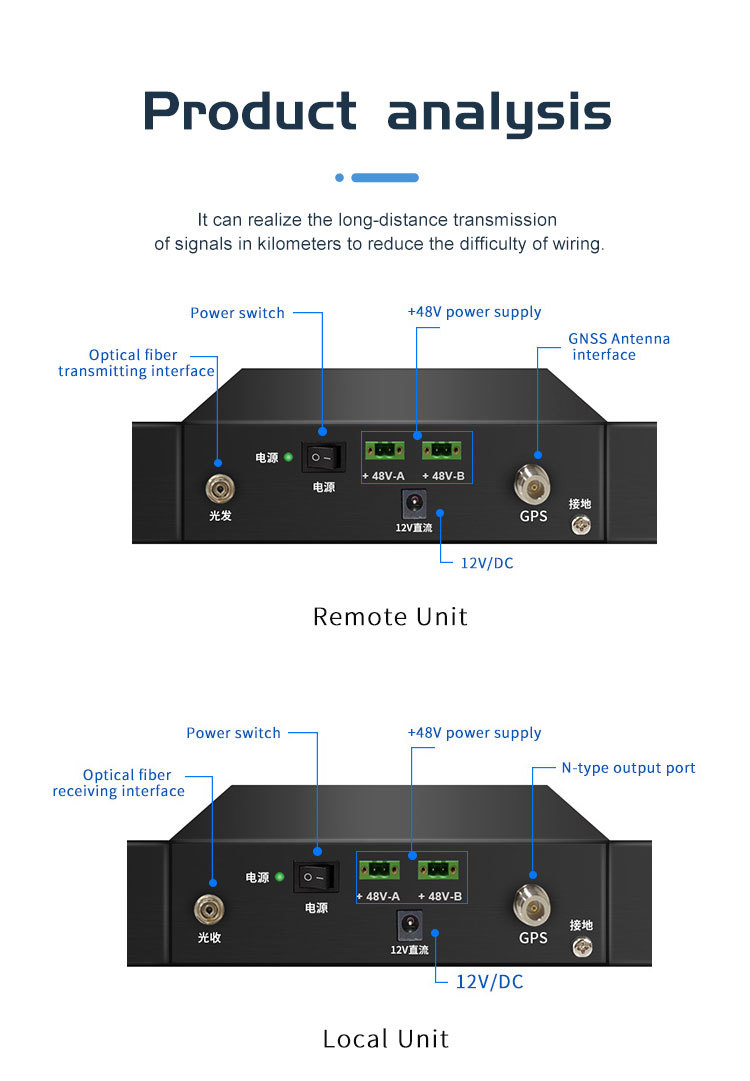

    The RCOF is powered by dua 48V and 12V DC power supply to guarantee the stable operation ofthe system. The antemna interface comnects to outdor GPS antemna. The satelitesignals received by Remote unit. the remote unit converts GPS sionals nto optcal sionals, Transmision through optcal fbers the local unt converts optcal signal into GPSIRF) sionals andofer GPS sianals to the RF output ports, the output ports connect to GPS receviers(BBU) or repeater antenna(for e-radiation). The gain is up to 40Db .

    Optica fiber interace round FC-APC interace is used as the interface of transmiting sianal remotely between remote unt and loca unit via optical fibers

    This product can achieve outdoor waterproof grade: IP65;And can be equipped with a temperature control module, when the temperature is lower than or higher tha the working temperature, the temperature control device will start, the equipment temperature control within the normal operating temperature range.

    【Parameter】

    Parameter

    Specification

    Min.

    Nominal

    Max.

    Unit

    Frequency range

    Remote unit antenna

    1150



    1650

    MHz

    I/O impedance

    Input, all output ports



    50



    Ω

    Gain

    40dB

    RGOF201TX＋RGOF201RX

    38

    40

    42

    dB

    Input voltage standing wave ratio







    2.0:1

    -

    Output voltage standing wave ratio







    2.0:1

    -

    Noise factor







    3

    dB

    Pass band ripple

    Antenna - unused port - 50Ω load





    3

    dB

    Maximum output power

    Antenna - unused port - 50Ω load

    -30





    dBm

    DC input

     DC 12V



    12



    VDC

    Current

    12V





    200

    mA

    Optical wavelength

    Sending （Remote unit）

    1310

    nm

    Optical wavelength

    Receiving （Local unit）

    1310

    nm

    Optical output power

    25℃

    Sending （Remote unit）



    8



    dBm

    Optical receive power

    25℃

    Receiving （Local unit）

    -30





    dBm

    Light delay





    5



    ns

    Optical fiber transmission distance

    Sending （Remote unit）





    40

    Km

    Operation Environment





    IP65





    Working temperature

     Normal

    -20

    25

    65

    ℃

    Working temperature

    temperature control inside

    -45

    25

    65

    ℃

    Storage temperature



    -30

    25

    80

    ℃

      pic  pic pic pic pic
