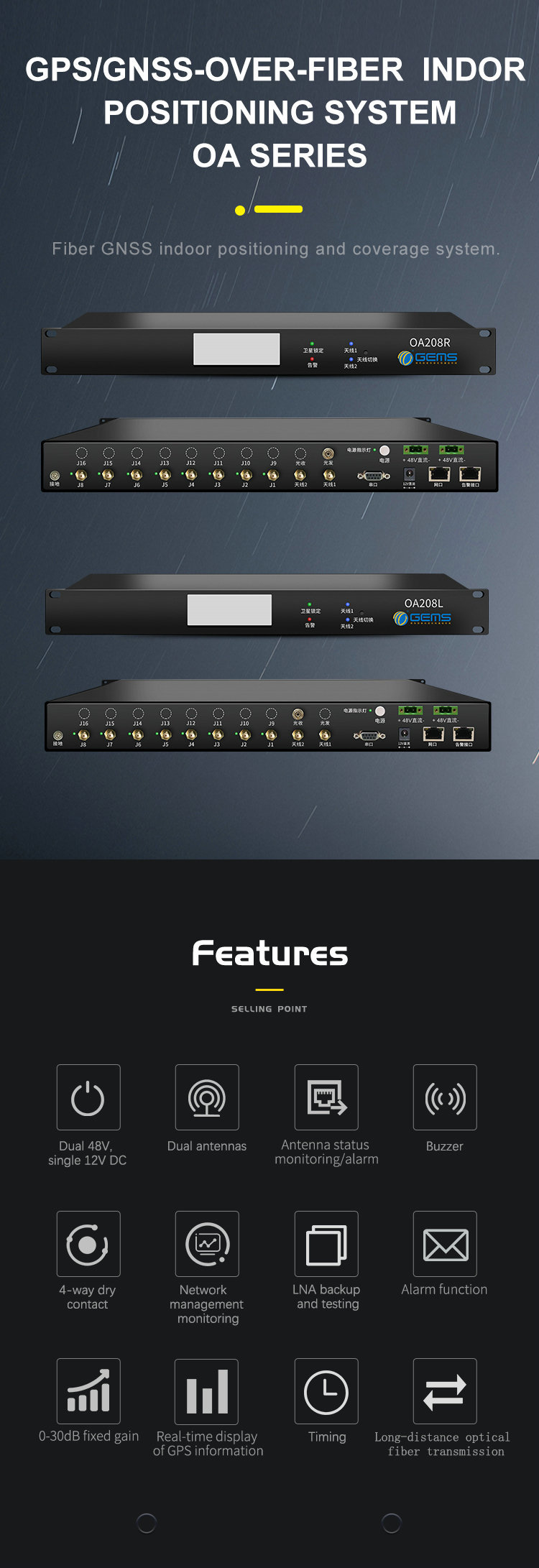

8-Way GPS over Fiber System For Indoor Positioning OA208L|R

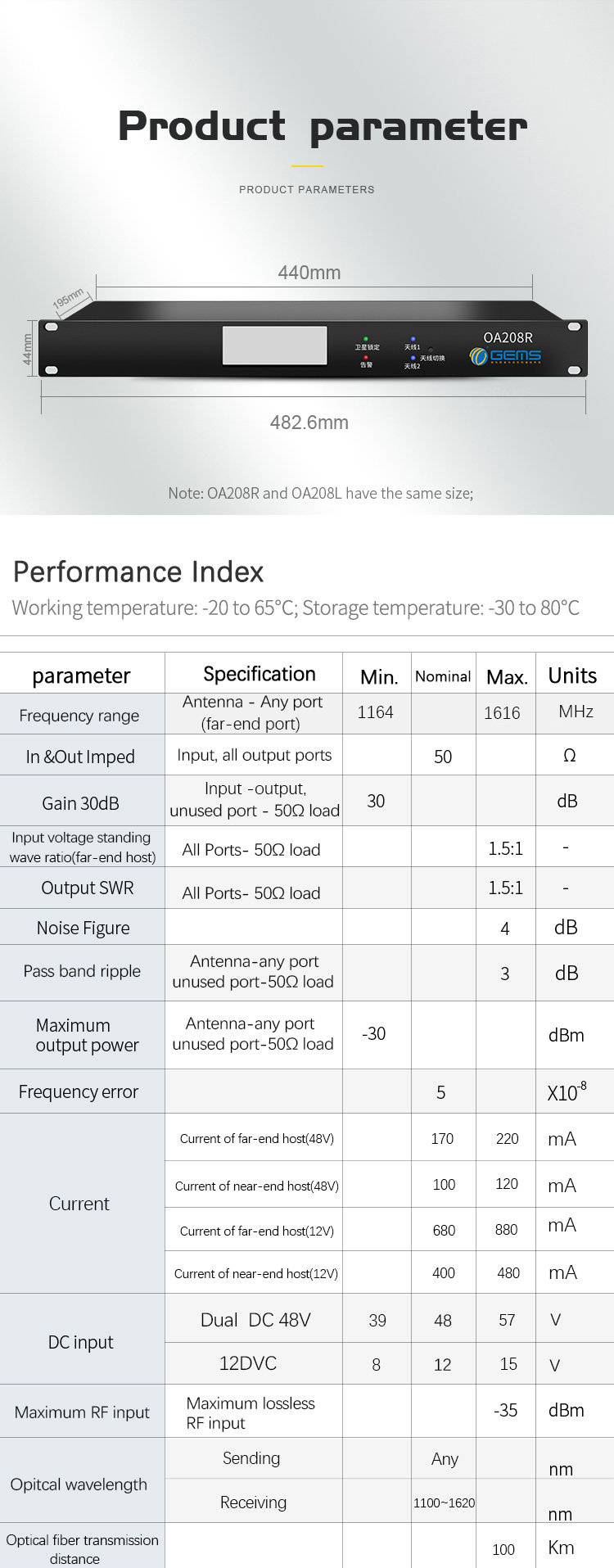

√ Dual antenns input √ Frequency range:1150~1650 MHz; √ Gain:Fixed gain of 40dB; √ Transmit power(TX): 8dBm; √ Receive sensitivity(RX): -30dBm; √ Optical fiber long-distance up to 60KM; √ 8-way RF output; √ Dual 48V DC power input;

Classification:

Product

GPS and GNSS Over Fiber Systems

Product accessories:


+
  • OA.jpg
  • DESCRIPTION
  • Videos
  • Download
  • BUY NOW
  • Description

    GEMS's GPS/GNSS-over-Fiber indoor positioning coverage system effectively solves signal coverage in large indoor environment and can transmitone or mukple satelite signals ie GPSIGNSS signas to room to provide rea-time satelite sianas for indoor GPS/GNSS thus rea izing the functionsof timing and fuzzy positioning.

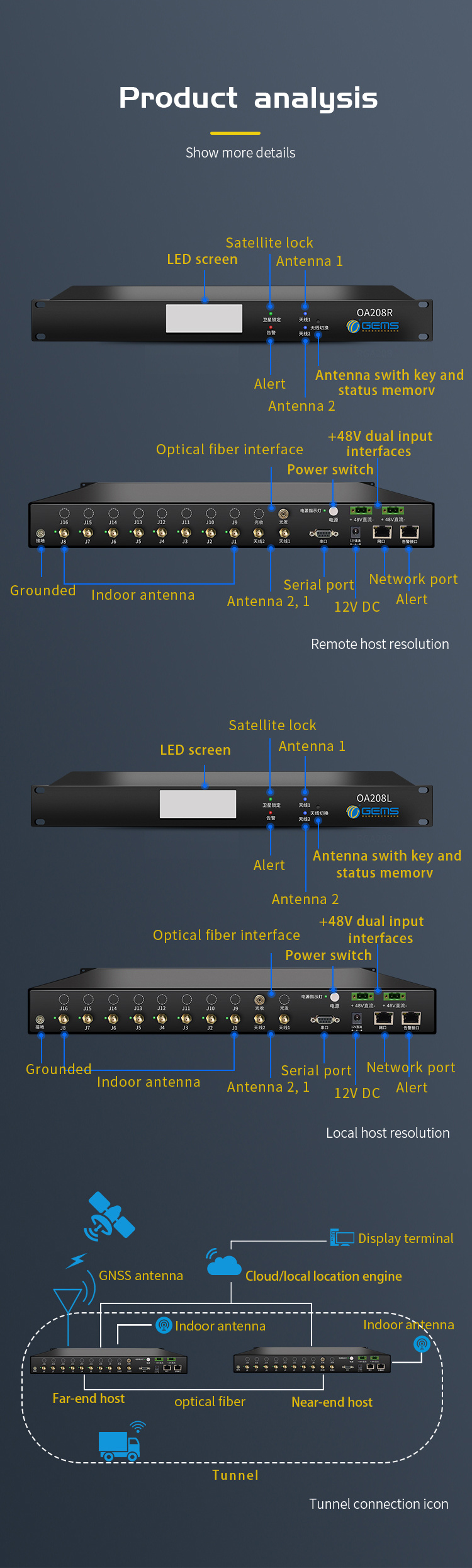

    This system is composed of far-end host and near-end host. The far-end host receives inputs through two ends while the near-end host receives thesatelite signals from far-end host through optical receiver module. Far-end and near-end hosts are respectively 8/12/16-port GPS/GNSS sinalamplification and distribution device

    Far-end host has dualinput intefaces that can be connected to two GPS receiving antennas, and distributes radio frequency signals to 8/12/16 Rroutput ports through power divider circuit after being amplified by LNA. In the meantime, one-way RF signals are converted into optical signals viaootical module and sent to near-end host through fiber port. The near-end host receives the fber sionals from far-end host and restores them intoGPS/GNSSsatellite signals, which will be amplified by LNA and distributed by power divider circuit. Meanwhile, RF signals are output by theoutput port

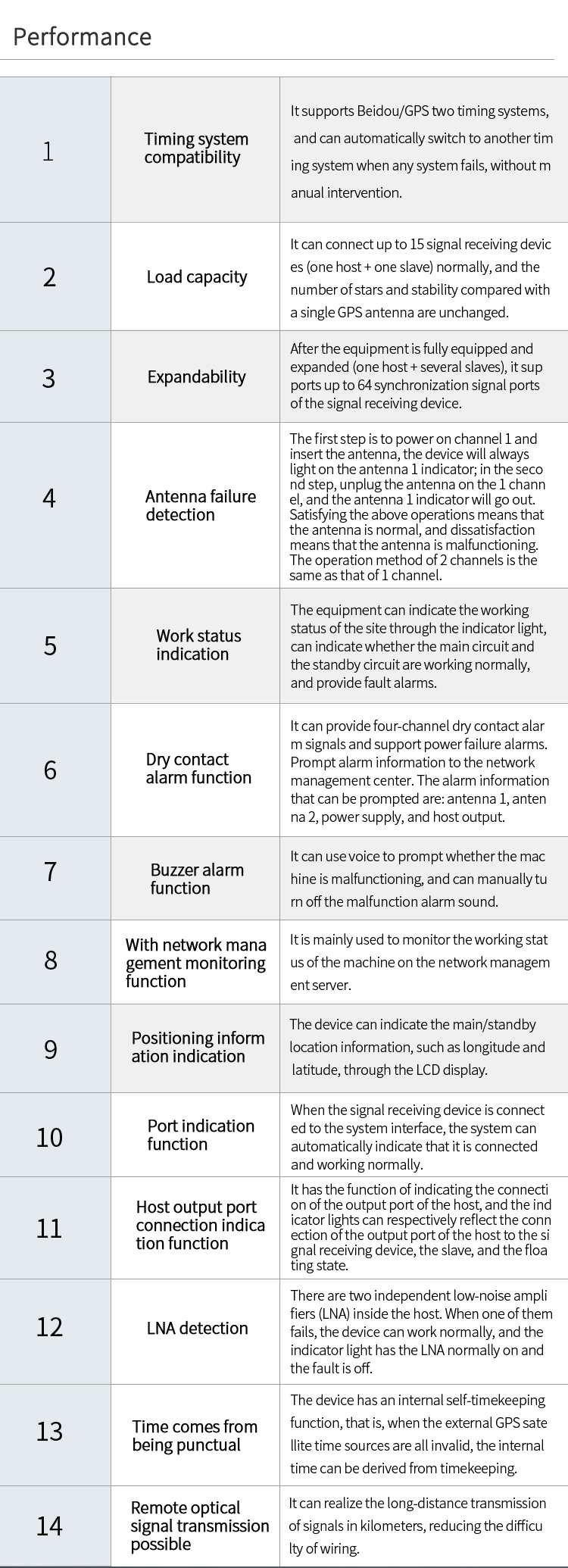

    Equipped with the latest GNSS sional system management terminal of GEMS, this system can monitor the device's running state, detailed parametersand others in real time
