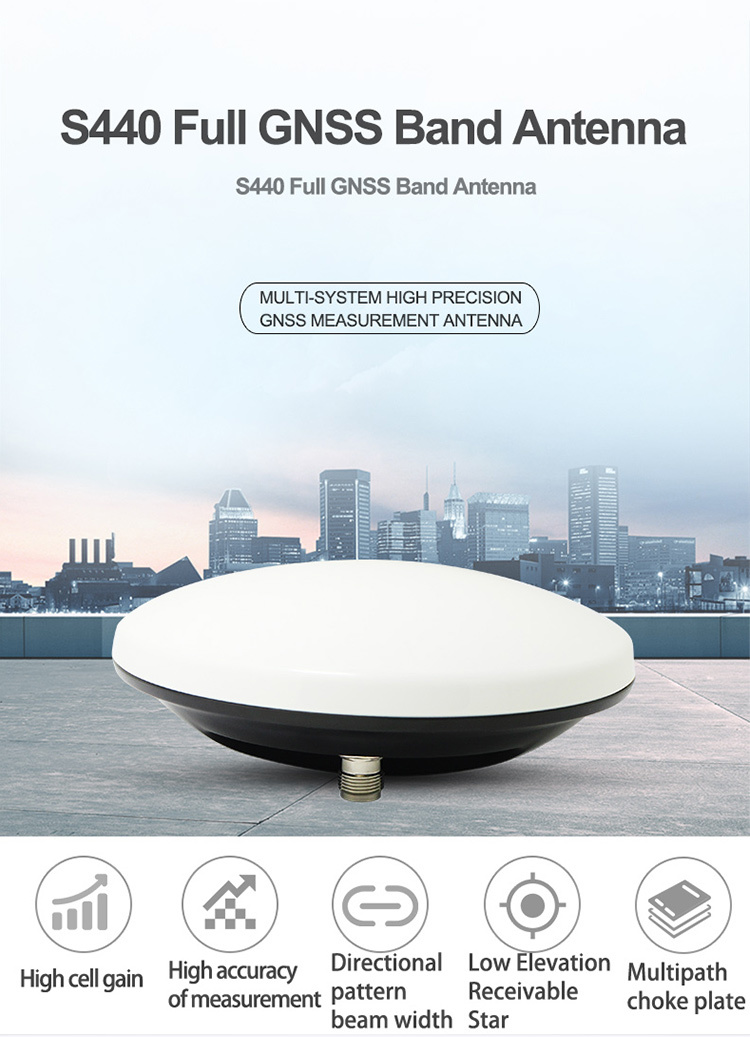

High Performance Survey Antenna S440
Classification:
Product
GPS and GNSS Antennas
Survey GNSS Antennas
Product accessories:
- DESCRIPTION
- Videos
- Download
- BUY NOW
-
▷Full GNSS Band Supported:GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC/OmniStar;
▷Frequency Range:1556~1623 and 1164~1288 MHz;
▷Gain:40±2dB;
▷Operation voltage: 3.3V~12V DC;
▷Within vertical plane wide-angle, phase center is stability;
▷Multi-star multi-frequency zero-phase centre dielectric antenna；
▷High gain and wide beamwidth, to ensure receiving satellite signal at low elevation angle;
▷Multi-Path rejection board inside, High measurement accuracy
▷LAN amplifier including band filter
▷Microstrip Stacking Materials and Processes
Main Feature
S440 is a set of GPS L1L25:GLONASS G1.G2. Beidou2 B1.B2,B3 and Galleo E1.E2,E5a.E5b four system active antenna. can be widely used ingeodesy, bridge construction, marine surveying, underwater topography measurement etc.
The antenna using mult feedpoint design, ensure the antenna phase center and the geometric center of the coincidence, improve the accuracy ofmeasurement. Antenna element has hih gain and wide beamwidth to ensure the sional receiving performance of satelite at low elevation andle. Muliath reecton board inside can e miate the mu t-pat intuence to measurement error. Bud-n ow norse amo fer modure. throuon the mut-staofilter to eliminate interference sianal. ensure the normal work in harsh electromaanetic environment

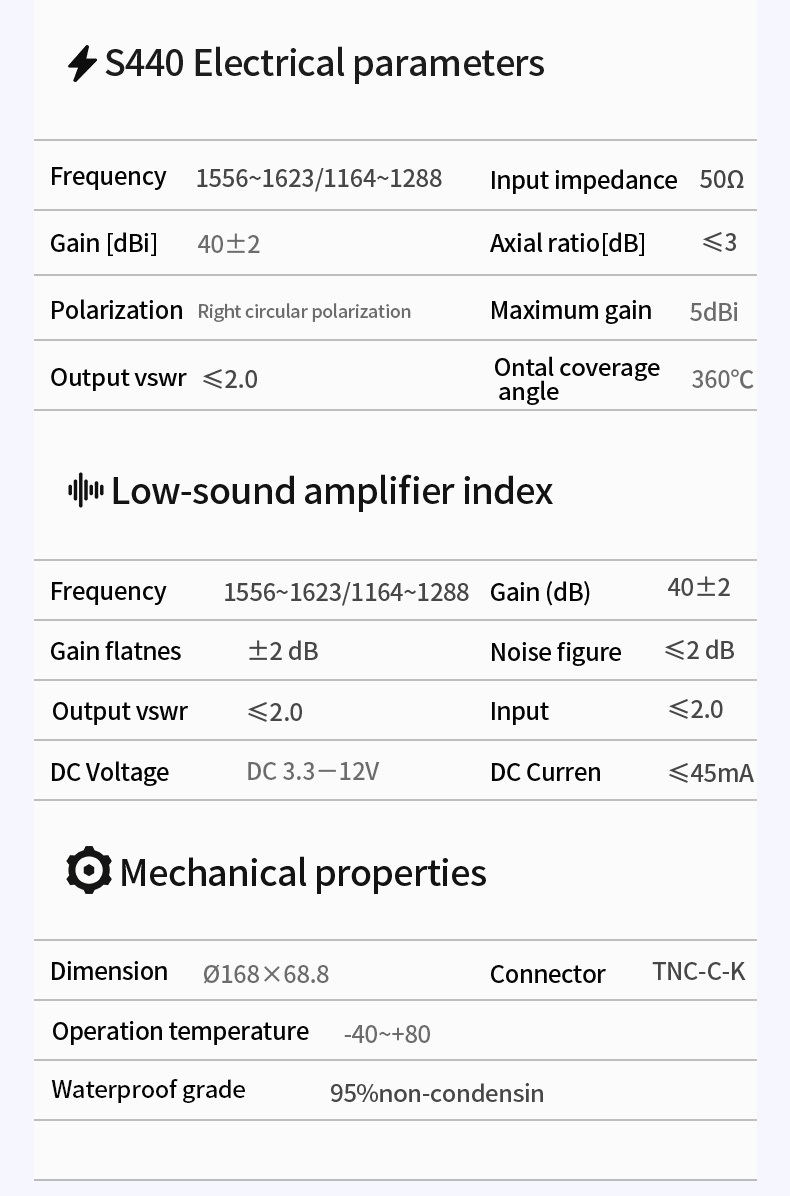

Electrical Parameters
Frequency [MHz]
1556~1623/1164~1288
Input impedance
50Ω
Gain [dBi]
40±2(With LNA gain)
Polarisation method
Right-handed circular polarization（RHCP）
Shaft ratio [dB]
≤3
Horizontal coverage angle
3600
Maximum gain
5.5dBi
Output standing wave（VSWR）
≤2.0
LNA Parameters
Frequency range (MHz)
1556~1623/1164~1288
Gain (dB)
40±2
In-band flatness (dB)
±2 dB
Noise factor(dB)
≤2 dB
Output standing wave(VSWR)
≤2.0
Input standing wave（VSWR）
≤2.0
Voltage
DC 3.3－12V
Current
DC ≤45mA
Mechanical
Size [mm]
Ø174×63
Connection head
TNC-C-K
Operating temperature [℃]
-40~+85
Storage temperature [℃]
-55~+85
Humidity
95% non-condensing
Waterproof rating
IP67
