Tiny GPS 2x16 Distribution System T216
Classification:
Product
GPS Distribution Systems
-
File size: 691.8KB
- Description
- Videos
- Download
- BUY NOW
-
【Description】
GPS Distribution system is a signal transmission solution that efficiently distributes satellite signals from a single GPS antenna to multiple device terminals. It is widely used in communication base stations, data centers, power dispatching, traffic control, precision timing, scientific research experiments, and other scenarios with strict requirements for time synchronization. The system can significantly improve signal utilization, simplify system architecture, and reduce construction and maintenance costs.
The product uses high-performance signal amplification and distribution modules to achieve stable amplification and multi-channel output of input GPS signals, ensuring balanced signal strength, consistent phase, and no interference at each output port. The system supports 1-input and multiple-output structures, such as 1-input and 2-output, 1-input and 4-output, and can be expanded to more channels to meet the needs of complex engineering projects for multi-terminal synchronization signals.
GPS Distributon system adopts a shielded housing design to effectively shield external electromagnetic interference, improve the system's anti-interference ability and long-term reliability. Built-in high-linearity low-noise amplifier maintains the original GPS signal quality and ensures output accuracy and stability. The interface is standardized and compatible with a variety of antenna and device connection methods, facilitating rapid deployment and integration.
Flexible installation and adaptability to different system environments. It supports wide voltage input and has multiple power protection mechanisms such as overcurrent, overvoltage, and reverse connection to ensure safe operation of the equipment. Some models also support intelligent functions such as remote monitoring and status indication to facilitate operation and maintenance management.

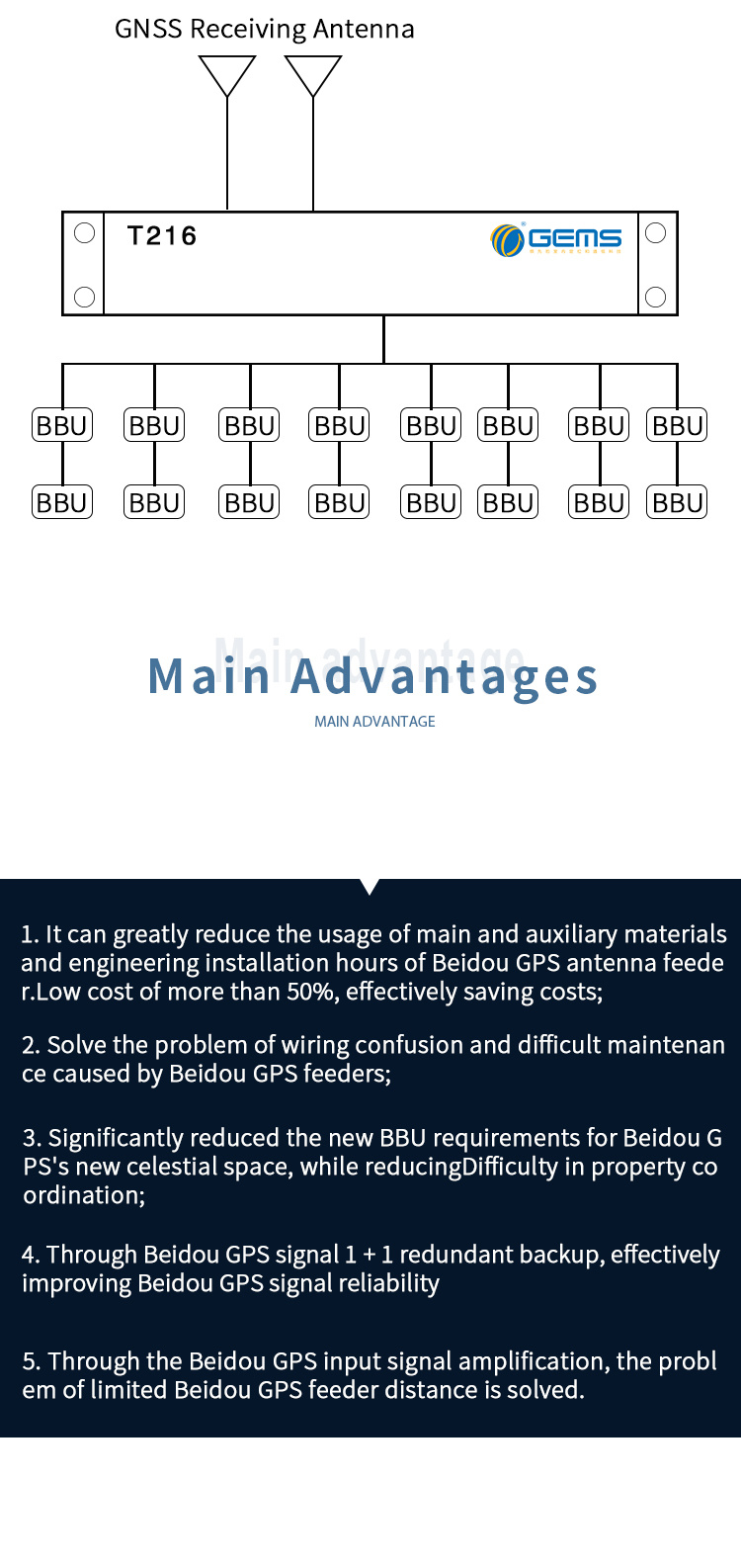

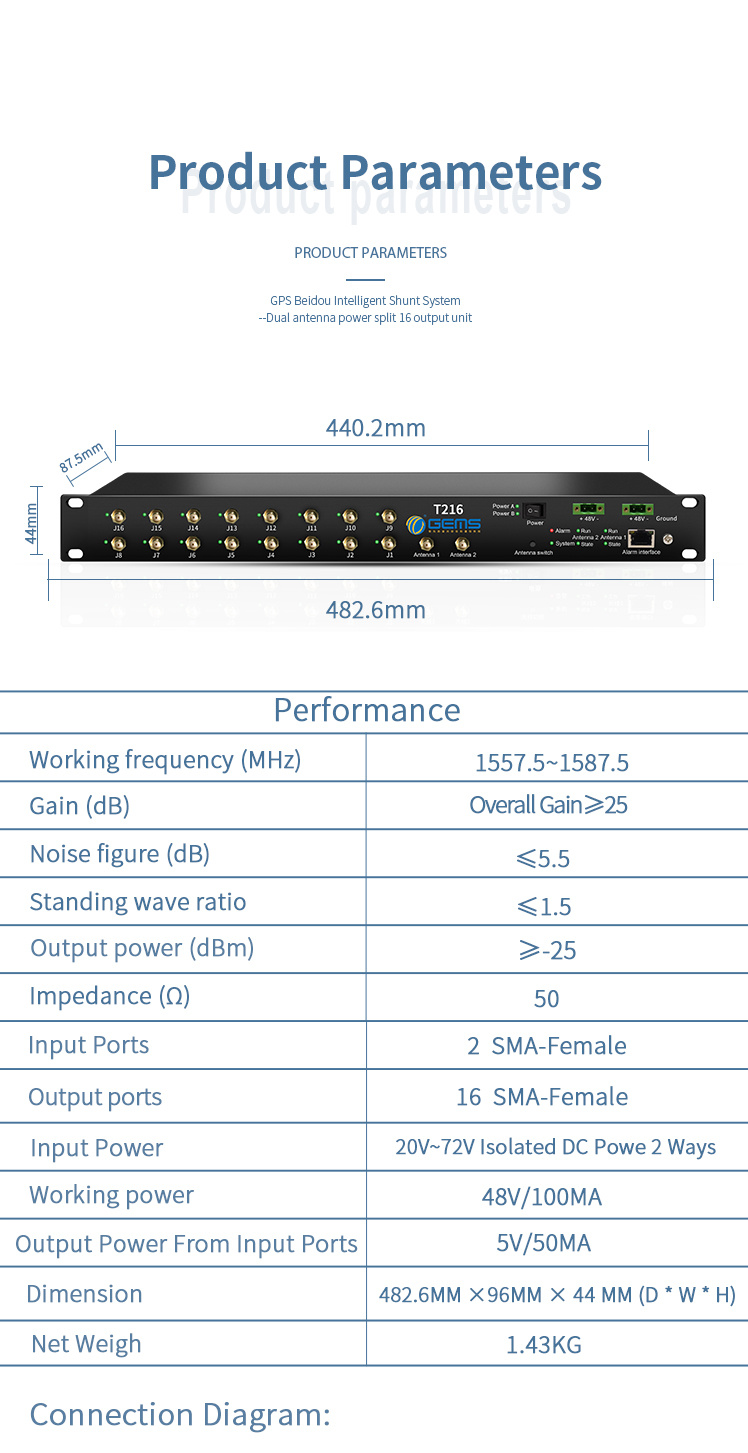

The T2xx series mainframe is a shared antenna device with two inputs and 8/12/16 outputs. Dual input ports connect to two GPS receiving antennas, and output ports provide BeiDou GPS signals to 8/12/16 ports at the same time. This is a simple system without a network management system.
【Typical Application】
Shared timing antenna for telecom operator's BBU room, R&D center and production line testing.
As a key component of modern precision positioning and time synchronization systems, GPS Distributon system can effectively improve the stability and efficiency of the overall system and is an ideal choice for building a highly reliable satellite signal receiving platform.
